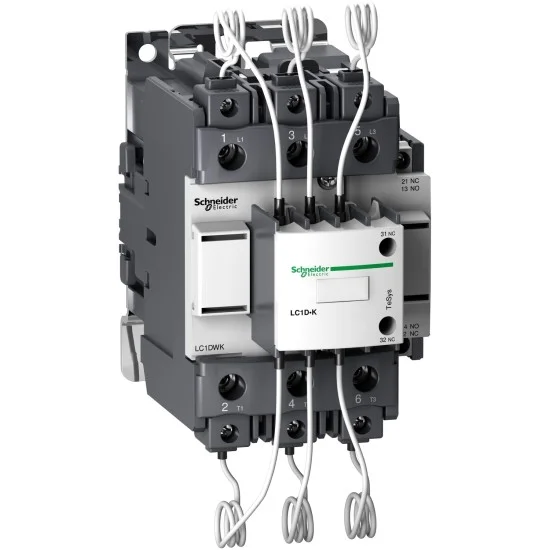

Schneider LC1DWK12 P7 TeSys D Capacitor Duty Contactors
, ,

Schneider LC1DWK12 P7 TeSys D Capacitor Duty Contactors

Compare

₨66,000.00

Summary

[Ie] rated operational current125 A (<= 140 °F (60°C)) at <= 440 V AC AC-1 power circuit

HARDWARE FEATURES

Auxiliary Contact Composition1 NO + 2 NC for signalling circuit
IP degree of protectionIP20 conforming to IEC 60529
Weight1.65 kg

Type

product or component typeContactor

General Specification

Connections – terminalsScrew clamp terminals 2 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end…Screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end
Electrical Durability300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
Poles Description3P
Tightening TorquePower circuit : 9 N.m – on connector
Control circuit : 1.7 N.m – on screw clamp terminal
[Uc] control circuit voltage220 V AC 50/60 Hz
[Ue] Rated Operational Voltage<= 690 V AC 50/60 Hz for power circuit
