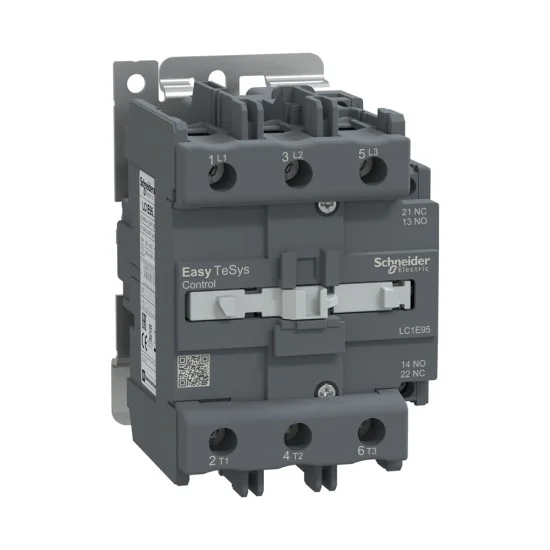

Schneider LC1E95M5 TeSys D Contactor
₨33,600.00
The latest Schneider LC1E95M5 TeSys D Contactor price in Pakistan is Rs. 33,600/- updated on September 10, 2026.
Product Details:
- EasyPact TVS contactor 3 poles for motor applications up to 95A 45kW@440V. It provides a 220V 50Hz AC coil, 3NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Features:
- Easy Tesys Control contactor provide a cost-effective solution to a simple application
- Designed to meet the requirements of Electro domestic and HVAC applications
- Easier to install and operate with multi-standard screws
- 2 principles to build your starter solution,To build the essential solutions in an easy and simple way
- Easy choice for simple applications
HARDWARE FEATURES
| IP degree of protection | IP2X conforming to IEC 60529 |
| Standards | IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 |
TECHNICAL SPECIFICATION
| Operational Current | 95 A (at <55°C) at <= 440 V AC AC-3 for power circuit 95 A (at <55°C) at <= 440 V AC AC-3e for power circuit 125 A (at <55°C) at <= 440 V AC AC-1 for power circuit |
| Operational Voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Thermal Current | 120 A (at 55°C) for power circuit |
General Specification
| Circuit voltage | 220 V AC 50 Hz |
| Depth | 121 mm |
| Fuse Rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 160 A gG at <= 690 V coordination type 1 for power circuit |
| Height | 127 mm |
| Mechanical Durability | 3000000 cycles |
| Motor Power | 22 kW at 220/230 V AC 45 kW at 380/400 V AC 45 kW at 415/440 V AC 45 kW at 500 V AC 50/60 Hz 45 kW at 660/690 V AC 55 kW at 660…690 V |
| Poles Description | 3P |
| Terminal | Power circuit: screw clamp terminals 1 4…50 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 4…16 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 4…25 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 4…50 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4…25 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 4…50 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end |
| Weight | 1.52 kg |
| Width | 85 mm |
