Industrial Automation & Circuit Protection, Industrial Contactors, SCHNEIDER ELECTRIC

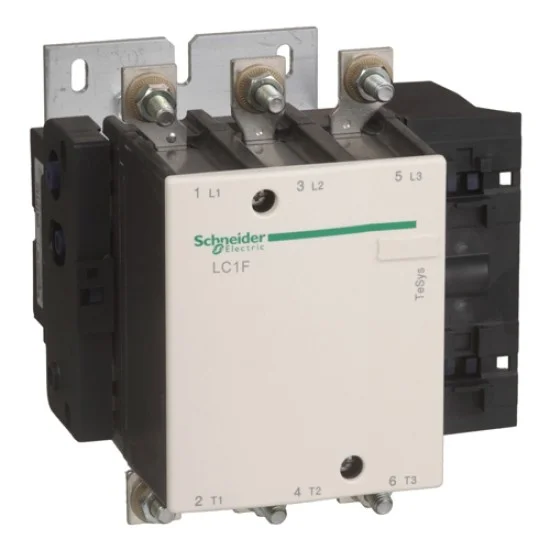

Schneider LC1F115 TeSys F Contactor
₨101,200.00
The latest Schneider LC1F115 TeSys F Contactor price in Pakistan is Rs. 101,200/- updated on September 9, 2026.
Documents:
Summary
| Height | 162 mm |
| [Ie] rated operational current | 200 A (<= 40°C) at <= 440 V AC-1 115 A (<= 55°C) at <= 440 V AC-3 |
| Depth | 171 mm |
HARDWARE FEATURES
| IP degree of protection | IP2x front face with shrouds (ordered separately) conforming to IEC 60529 IP2x front face with shrouds (ordered separately) conforming to VDE 0106 |
| Weight | 3.83 kg |
Type
| product or component type | Contactor |
General Specification
| Connections – terminals | Power circuit : connector 1 cable(s) 95 mm² Power circuit : lugs-ring terminals 1 cable(s) 95 mm² Power circuit : bolted connection Power circuit : bar 2 x (20 x 3 mm) |
| Poles Description | 3P |
| Tightening Torque | Power circuit : 10 N.m |
| Width | 163.5 mm |
| [Ue] Rated Operational Voltage | <= 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
