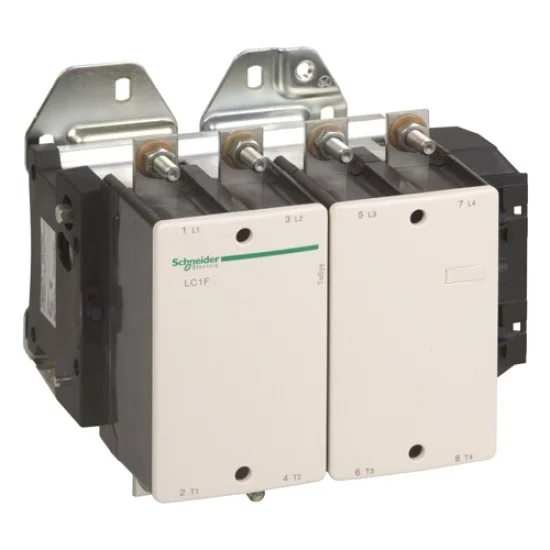

Schneider LC1F4004 TeSys F Contactor
₨374,000.00
The latest Schneider LC1F4004 TeSys F Contactor price in Pakistan is Rs. 374,000/- updated on September 9, 2026.
Documents:
Capacitance
| Breaking capacity | 3200 A conforming to IEC 60947-4-1 |
Summary
| [Ie] rated operational current | 500 A (<= 40°C) at <= 440 V AC AC-1 |
| Range | TeSys |
| Weight | 8 kg |
HARDWARE FEATURES
| IP degree of protection | IP2x front face with shrouds (ordered separately) conforming to IEC 60529 IP2x front face with shrouds (ordered separately) conforming to VDE 0106 |
Type
| product or component type | Contactor |
General Specification
| Connections – terminals | Power circuit : connector 1 cable(s) 150 mm² Power circuit : lugs-ring terminals 1 cable(s) 150 mm² Power circuit : bolted connection Power circuit : bar 2 x (25 x 3 mm) |
| Poles Description | 4P |
| Tightening Torque | Power circuit : 35 N.m |
| [Ue] Rated Operational Voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
