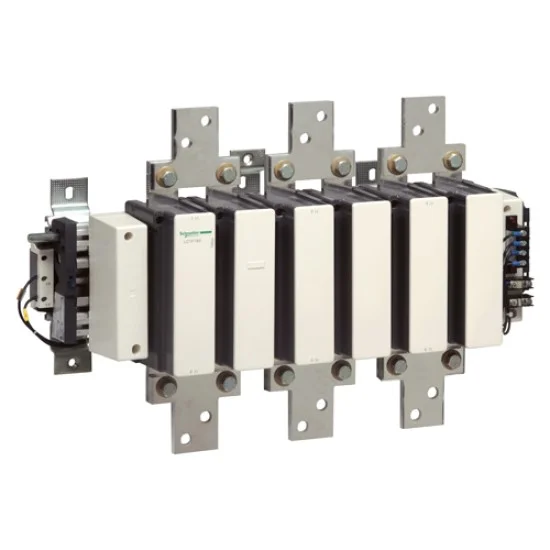

Schneider LC1F780 TeSys F Contactor
₨1,265,000.00
The latest Schneider LC1F780 TeSys F Contactor price in Pakistan is Rs. 1,265,000/- updated on September 9, 2026.
OVERVIEW:
- [Icw] Rated Short-time Withstand Current:
- 6250 A <= 40°C 10 s
- 5600 A <= 40°C 30 s
- 4600 A <= 40°C 1 min
- 3000 A <= 40°C 3 min
- 2200 A <= 40°C 10 min
Motor Power kW:
- 400 kW at 380…400 V AC 50/60 Hz AC-3
- 425 kW at 415 V AC 50/60 Hz AC-3
- 450 kW at 1000 V AC 50/60 Hz AC-3
- 425 kW at 440 V AC 50/60 Hz AC-3
- 450 kW at 500 V AC 50/60 Hz AC-3
- 110 kW at 400 V AC 50/60 Hz AC-4
- 220 kW at 220…240 V AC 50/60 Hz AC-3
- 475 kW at 660…690 V AC 50/60 Hz AC-3
Documents:
Capacitance
| Breaking capacity | 6240 A conforming to IEC 60947-4-1 |
Summary
| [Ie] rated operational current | 1600 A (<= 40°C) at <= 440 V AC AC-1 780 A (<= 55°C) at <= 440 V AC AC-3 |
| Range | TeSys |
HARDWARE FEATURES
| IP degree of protection | IP20 front face with shrouds (ordered separately) conforming to IEC 60529 IP20 front face with shrouds (ordered separately) conforming to VDE 0106 |
Type
| product or component type | Contactor |
General Specification
| Connections – terminals | Power circuit : bolted connection Power circuit : bar 2 x (100 x 5 mm) |
| Poles Description | 3P |
| Tightening Torque | Power circuit : 58 N.m |
| weight | 48 kg |
| [Ue] Rated Operational Voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
