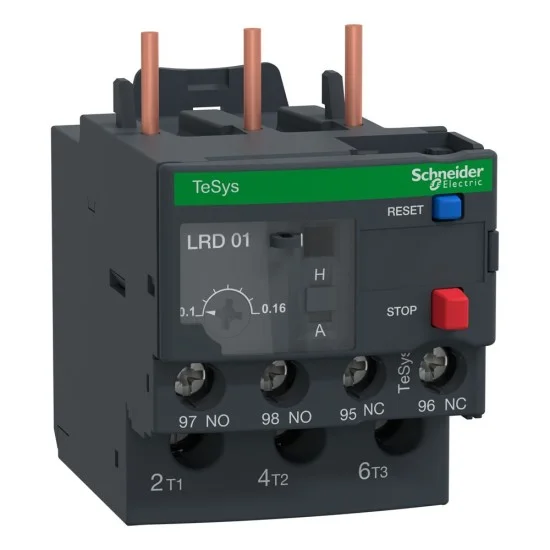

Schneider LRD01 TeSys Overload Relay
₨ 6,560
The latest Schneider LRD01 TeSys Overload Relay price in Pakistan is Rs. 6,560/- updated on October 24, 2026.
The Schneider LRD01 TeSys Overload Relay is a thermal overload relay that protects motors from overcurrent.
Product Details
LRD01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It also protects motors less than 0.06kW@400V thanks to a thermal range 0.10-0.16A, a tripping class 10A and phase unbalance protection. Also, LRD01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors.
With a thermal setting range 0.10-0.16A, a tripping class 10A and phase unbalance detection, it protects motors less than 0.06kW@400V. It also provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Besides this, available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Additionally, thermal overload protection relay, bimetallic type, with phase unbalance protection (differential).
Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Furthermore, light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Features
- Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
- New modern look & feel of all machines
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expert
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1 |
| Operational Voltage | 690 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| Thermal Current | 5 A signalling circuit |
| Withstand voltage | 6 kV |
General Specification
| Compatibility | LC1D25 LC1D09 LC1D12 LC1D18 LC1D38 LC1D32 |
| Depth | 2.8 in (70 mm) |
| Fuse Rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Height | 2.6 in (66 mm) |
| Network Frequency | 0…400 Hz |
| Terminal | Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end Power circuit screw clamp terminals 1 0.002…0.02 in² (1.5…10 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) solid without cable end |
| Weight | 0.273 lb(US) (0.124 kg) |
| Width | 1.8 in (45 mm) |
