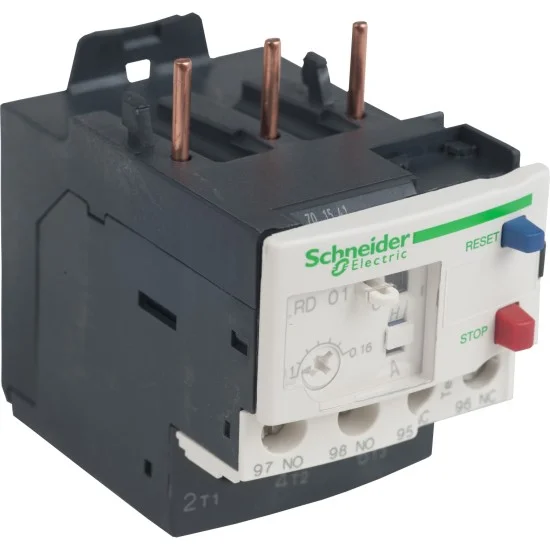

Schneider LRD07 TeSys LRD Overload Relays
, ,

Schneider LRD07 TeSys LRD Overload Relays

Compare

₨ 3,360

The latest Schneider LRD07 TeSys LRD Overload Relays price in Pakistan is Rs. 3,360/- updated on October 24, 2026.

OVERVIEW:
Product Compatibilities:

  • LC1D09
  • LC1D12
  • LC1D18
  • LC1D25
  • LC1D32
  • LC1D38
Documents:

Schneider LRD07 TeSys LRD Overload Relays Data Sheet.pdf

Summary

RangeTeSys

HARDWARE FEATURES

Network TypeDC
AC

Type

product or component typeDifferential thermal overload relay

General Specification

Control TypeRed push-button stop
Blue push-button for reset mode
Network Frequency0…400 Hz
Tightening TorqueControl circuit : 1.7 N.m on screw clamp terminals
Power circuit : 1.7 N.m on screw clamp terminals
weight0.124 kg
[Ue] Rated Operational Voltage690 V AC 0…400 Hz
[Uimp] rated impulse withstand voltage6 kV
[Ui] rated insulation voltage600 V power circuit conforming to CSA
600 V power circuit conforming to UL
690 V power circuit conforming to IEC 60947-4-1
