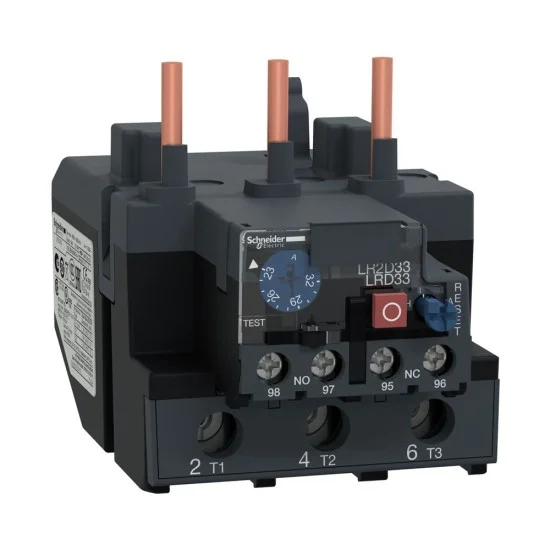

Schneider LRD3353 TeSys Overload Relay
₨26,400.00
The latest Schneider LRD3353 TeSys Overload Relay price in Pakistan is Rs. 26,400/- updated on September 9, 2026.
Product Details:
- TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 23 to 32 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Features:
- Ensure high safty with phase failure and load unbalance detection
- The thermal adjustement dial enables accurate and reliable operation
- It is designed with a transparent cover lockable by sealing in case of misoperation
- Simple mounting on DIN rail or screw fixing
- Multi sdandards certified makes it possible to wide application
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Network Type | AC DC |
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit 1000 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL |
| Operational Voltage | 1000 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| Thermal Current | 5 A signalling circuit |
| Withstand voltage | 6 kV IEC 60947-1 |
General Specification
| Adjustment Range | 23…32 A |
| Compatibility | LC1D80 LC1D95 |
| Depth | 4.5 in (115 mm) |
| Fuse Rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Height | 3.2 in (81 mm) |
| Network Frequency | 0…400 Hz |
| Terminal | Power circuit screw clamp terminals 1 0.006…0.05 in² (4…35 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.006…0.05 in² (4…35 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.006…0.05 in² (4…35 mm²) solid without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end |
| Weight | 1.12 lb(US) (0.51 kg) |
| Width | 2.8 in (70 mm) |
