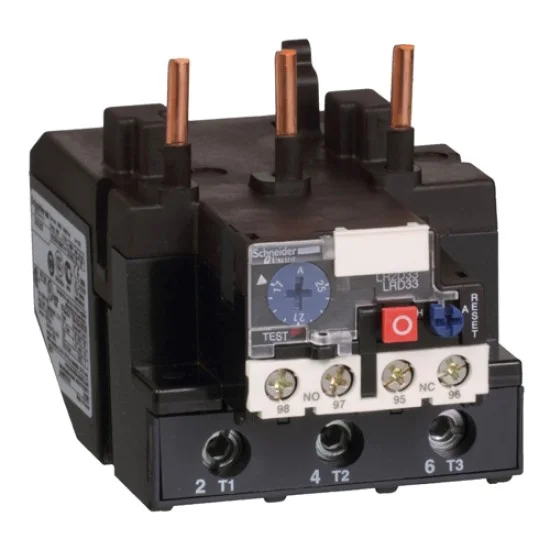

Schneider LRD3365 TeSys LRD 80…104 A Overload Relays
₨ 16,320
The latest Schneider LRD3365 TeSys LRD 80...104 A Overload Relays price in Pakistan is Rs. 16,320/- updated on October 28, 2026.
You can buy the Schneider LRD3365 TeSys LRD 80…104 A Overload Relays online at Roshanex in Pakistan.
OVERVIEW:
Product Compatibilities:
- LC1D80
- LC1D95
Connection – Terminals:
- Power circuit : screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end
- Power circuit : screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
- Power circuit : screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Documents:
Schneider LRD3365 TeSys LRD 80…104 A Overload Relays Data Sheet.pdf
Summary
| Range | TeSys |
HARDWARE FEATURES
| Depth | 121 mm |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate with specific accessories. Rail with specific accessories. Under contactor |
| Network Type | DC AC |
Type
| product or component type | Differential thermal overload relay |
General Specification
| Control Type | Red push-button stop Blue push-button for reset mode |
| Network Frequency | 0…400 Hz |
| Tightening Torque | Control circuit : 1.7 N.m on screw clamp terminals Power circuit : 9 N.m on screw clamp terminals |
| weight | 0.51 kg |
| Width | 75 mm |
| [Ue] Rated Operational Voltage | 690 V AC 0…400 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 1000 V power circuit conforming to IEC 60947-4-1 600 V power circuit conforming to CSA 600 V power circuit conforming to UL |
| Adjustable detection range | 80…104 A |
