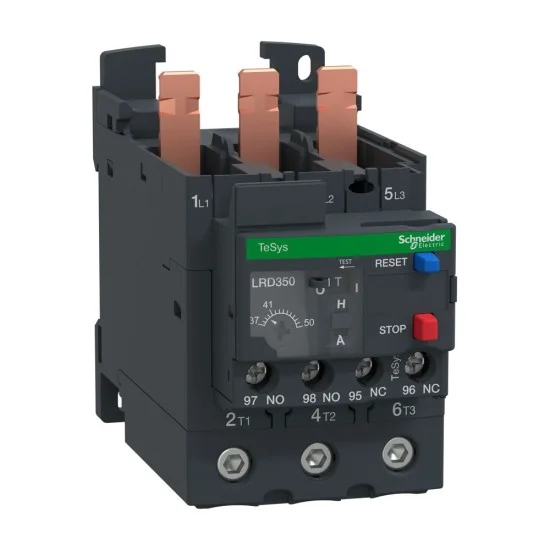

Schneider LRD350 TeSys Overload Relay
₨ 24,000
The latest Schneider LRD350 TeSys Overload Relay price in Pakistan is Rs. 24,000/- updated on October 28, 2026.
The Schneider LRD350 TeSys Overload Relay is a thermal overload relay that protects motors from overcurrent.
Product Details
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. In addition, this overload relay can be used with 40 amp through 65 amp TeSys D contactors. Also, these differential thermal overload relays detect over currents in the lines to the motor. Moreover, when an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. Besides this, this will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 37 to 50 amperes. This trip current rating is calibrated per Class 10A. This overload relay uses EVERLINK termnals in place of the standard terminals.
Features
- Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
- New modern look & feel of all machines
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expert
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Network Type | DC AC |
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1 |
| Operational Voltage | 690 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| Temperature Compensation | -4…140 °F (-20…60°C) |
| Thermal Current | 5 A signalling circuit |
| Withstand voltage | 6 kV |
General Specification
| Adjustment Range | 37…50 A |
| Compatibility | LC1D65A LC1D50A LC1D40A |
| Control Type | Red push-button stop Blue push-button reset |
| Depth | 4.8 in (123 mm) |
| Fuse Rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Height | 2.8 in (70 mm) |
| Network Frequency | 0…400 Hz |
| Terminal | Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end Power circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) flexible without cable end Power circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) flexible with cable end Power circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) solid without cable end |
| Weight | 0.827 lb(US) (0.375 kg) |
| Width | 2.2 in (55 mm) |
