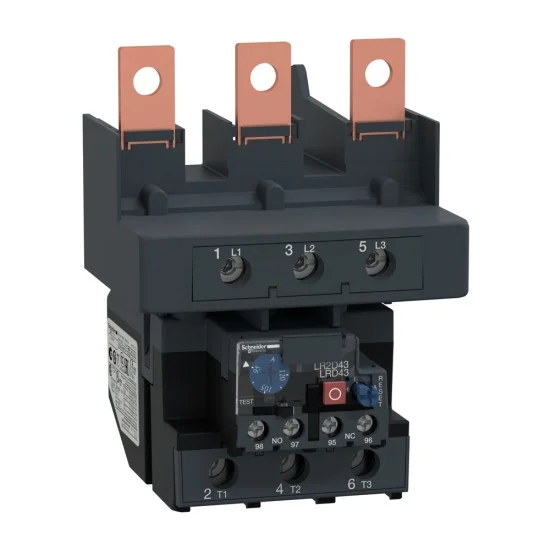

Schneider LRD4367 TeSys Overload Relay
₨ 48,000
The latest Schneider LRD4367 TeSys Overload Relay price in Pakistan is Rs. 48,000/- updated on October 28, 2026.
The Schneider LRD4367 TeSys Overload Relay is a thermal overload relay that protects motors from overcurrent.
Product Details
LRD4367 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It also protects motors 55kW@400V thanks to a thermal range 95-120A, a tripping class 10A and phase unbalance protection. Also, LRD4367 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors.
With a thermal setting range 95-120A, a tripping class 10A and phase unbalance detection, it protects motors 55kW@400V. It also provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Besides this, available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Additionally, thermal overload protection relay, bimetallic type, with phase unbalance protection (differential).
Direct mounting on the bottom terminals of a Tesys contactor LC1D115 and D150 to form a compact starter. Furthermore, light and compact, 120mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator.
Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Features
- Ensure high safty with phase failure and load unbalance detection
- The thermal adjustement dial enables accurate and reliable operation
- It is designed with a transparent cover lockable by sealing in case of misoperation
- Simple mounting on DIN rail or screw fixing
- Multi sdandards certified makes it possible to wide application
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Network Type | AC DC |
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit 1000 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL |
| Operational Voltage | 1000 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| Temperature Compensation | -4…140 °F (-20…60°C) |
| Thermal Current | 5 A signalling circuit |
| Withstand voltage | 6 kV IEC 60947-1 |
General Specification
| Adjustment Range | 95…120 A |
| Compatibility | LC1D150 LC1D115 |
| Control Type | Red push-button stop Blue push-button reset |
| Depth | 5.2 in (132 mm) |
| Fuse Rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Network Frequency | 0…400 Hz |
| Terminal | Power circuit screw clamp terminals 1 0.006…0.05 in² (4…35 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end Power circuit screw clamp terminals 1 0.006…0.08 in² (4…50 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.006…0.08 in² (4…50 mm²) solid without cable end |
| Weight | 2.0 lb(US) (0.9 kg) |
