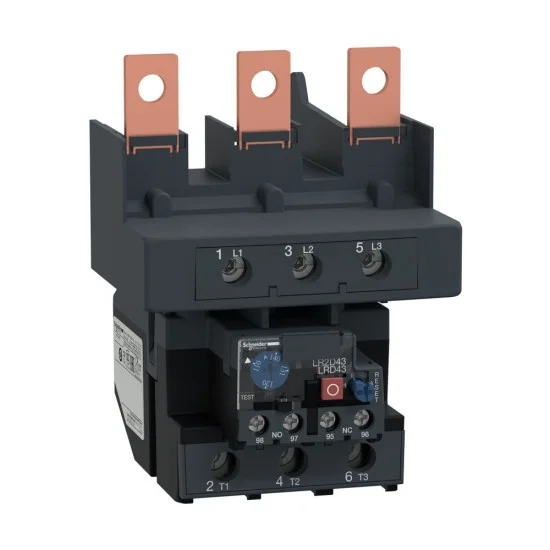

Schneider LRD4369 TeSys Overload Relay
₨48,000.00
The latest Schneider LRD4369 TeSys Overload Relay price in Pakistan is Rs. 48,000/- updated on September 9, 2026.
Product Details:
- LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 63kW@400V thanks to a thermal range 110-140A, a tripping class 10A and phase unbalance protection. LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 110-140A, a tripping class 10A and phase unbalance detection, it protects motors 63kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D150 to form a compact starter. Light and compact, 120mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Features:
- Ensure high safty with phase failure and load unbalance detection
- The thermal adjustement dial enables accurate and reliable operation
- It is designed with a transparent cover lockable by sealing in case of misoperation
- Simple mounting on DIN rail or screw fixing
- Multi sdandards certified makes it possible to wide application
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Network Type | DC AC |
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit 1000 V IEC 60947-4-1 |
| Operational Voltage | 1000 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| Temperature Compensation | -4…140 °F (-20…60°C) |
| Thermal Current | 5 A signalling circuit |
| Withstand voltage | 6 kV IEC 60947-1 |
General Specification
| Adjustment Range | 110…140 A |
| Compatibility | LC1D150 |
| Depth | 5.2 in (132 mm) |
| Fuse Rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Terminal | Power circuit screw clamp terminals 1 0.006…0.05 in² (4…35 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end Power circuit screw clamp terminals 1 0.006…0.08 in² (4…50 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.006…0.08 in² (4…50 mm²) solid without cable end |
| Weight | 2.0 lb(US) (0.9 kg) |
