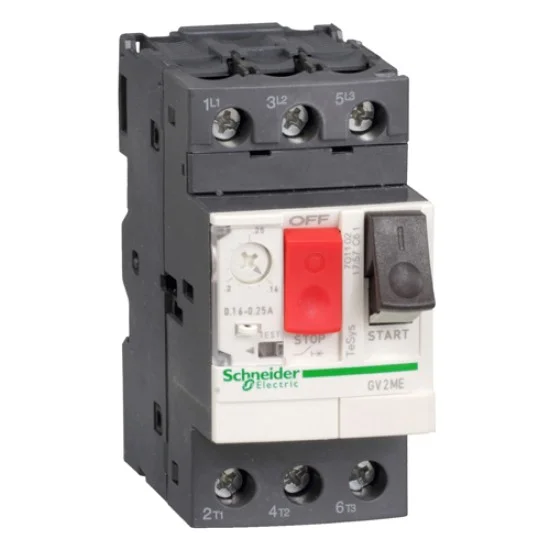

Schneider Motor Circuit Breaker GV2-ME14
₨14,300.00
The latest Schneider Motor Circuit Breaker GV2-ME14 price in Pakistan is Rs. 14,300/- updated on July 21, 2026.
OVERVIEW:
- GV2 are 3 pole circuit breaker with thermal and magnetic protection. Specially designed for control and protection of motors. it conforms latest to IEC,947-2 and 947 – 4-1 VDE & BSS standard. it is equipped with adjustable thermal trip and fixed magnetic trip set at 13 x 1r(Approx.) and phase failure protection. it can be eventually mounted on DIN rails.
Documents:
Capacitance
| Breaking capacity | 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
Current AC
| [In] rated current | 10 A |
Display Specification
| Name | TeSys GV2 |
Summary
| Ambient Air Temperature for Operation | -20…60°C |
| Ambient Air Temperature for Storage | -40…80°C |
| Height | 89 mm |
| Weight | 0.26 kg |
| Depth | 78.2 mm |
HARDWARE FEATURES
| IK Degree of Protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
Type
| product or component type | Circuit breaker |
UC100
| Standards | EN 60204 IEC 60947-1 IEC 60947-2 IEC 60947-4-1 NF C 63-120 NF C 63-650 NF C 79-130 UL 508 VDE 0113 VDE 0660 CSA C22.2 |
General Specification
| Connections – terminals | Screw clamp terminals 2 cable(s) 1…6 mm² solid Screw clamp terminals 2 cable(s) 1.5…6 mm² flexible without cable end Screw clamp terminals 2 cable(s) 1…4 mm² flexible with cable end |
| Control Type | Push-button |
| Electrical Durability | 100000 cycles for AC-3 at 440 V |
| Magnetic Tripping Current | 138 A |
| Mechanical Durability | 100000 cycles |
| Network Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Poles Description | 3P |
| Tightening Torque | 1.7 N.m on screw clamp terminals |
| Width | 45 mm |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
OTHERS
| Certifications | ATEX BV CCC CEBEC CSA DNV EZU GL LROS (Lloyds register of shipping) RINA SETI TSE UL EAC |
