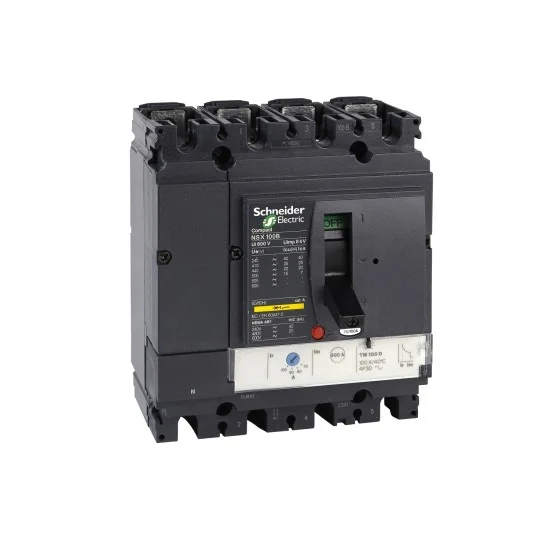

Schneider NSX100N TMD-100A 4 Pole Compact Circuit Breaker
₨ 33,150
The latest Schneider NSX100N TMD-100A 4 Pole Compact Circuit Breaker price in Pakistan is Rs. 33,150/- updated on October 27, 2026.
You can buy the Schneider NSX100N TMD-100A 4 Pole Compact Circuit Breaker online at Roshanex in Pakistan.
OVERVIEW:
Electric Durability:
- 10000 cycles 690 V In conforming to IEC 60947-2
- 20000 cycles 690 V In/2 conforming to IEC 60947-2
- 30000 cycles 440 V In conforming to IEC 60947-2
- 50000 cycles 440 V In/2 conforming to IEC 60947-2
Rated Service Breaking Capacity:
- Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- Ics 35 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
- Ics 36 kA 500 V AC 50/60 Hz conforming to IEC 60947-2
- Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- Ics 50 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
- Ics 90 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity:
- 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
- 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- 36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
- 90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
- 20 kA at 600 V AC 50/60 Hz conforming to UL 508
- 50 kA at 480 V AC 50/60 Hz conforming to UL 508
- 85 kA at 240 V AC 50/60 Hz conforming to UL 508
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Current AC
| [In] rated current | 100 A ( 40°C ) |
Summary
| Height | 161 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 86 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Overload protection (long time) L Short time short-circuit protection with fixed delay So Instantaneous short-circuit protection I |
| Trip Unit Rating | 100 A ( 40°C ) |
| Weight | 2.4 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Mechanical Durability | 50000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 4P |
| Protected Poles Description | 4t |
| Width | 140 mm |
| [tr] Long-time Delay Adjustment Range | 15 s 6 x Ir 120…400 s 1.5 x In |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
