AC Breakers, Industrial Automation & Circuit Protection, SCHNEIDER ELECTRIC

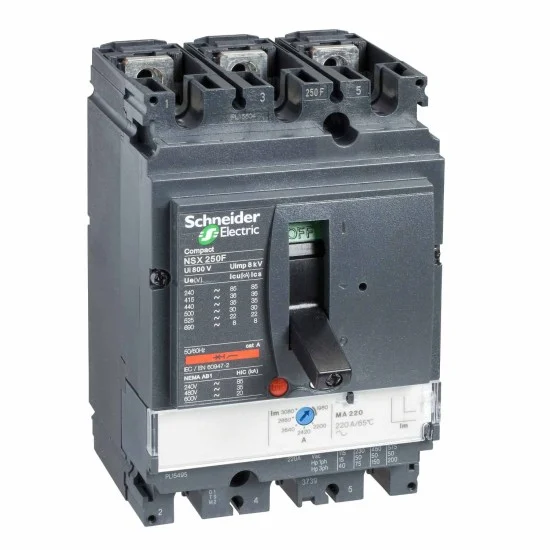

Schneider NSX250N MA 150A 3Pole Compact Circuit Breaker
₨48,750.00
The latest Schneider NSX250N MA 150A 3Pole Compact Circuit Breaker price in Pakistan is Rs. 48,750/- updated on July 23, 2026.
OVERVIEW:
Electrical Durability:
- 10000 cycles 440 V In/2 conforming to IEC 60947-2
- 15000 cycles 690 V In/2 conforming to IEC 60947-2
- 20000 cycles 440 V In conforming to IEC 60947-2
- 5000 cycles 690 V In conforming to IEC 60947-2
Documents:
Schneider NSX250N MA 150A 3Pole Compact Circuit Breaker Data Sheet.pdf
Current AC
| [In] rated current | 150 A ( 65°C ) 160 A ( 40°C ) |
Summary
| Range | Compact |
HARDWARE FEATURES
| Network Type | AC |
| Number of Poles | 3P |
| Trip Unit Rating | 150 A ( 65°C ) |
Type
| product or component type | Circuit breaker |
General Specification
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Protected Poles Description | 3t |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
