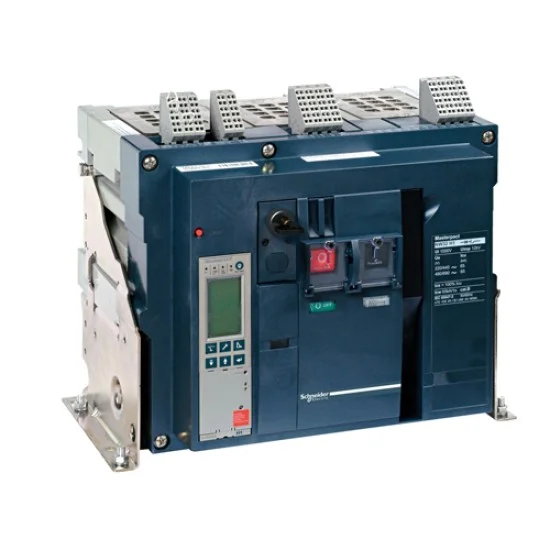

Schneider NW08H1 Air Circuit Breaker 800A – 3 Pole
₨ 759,000
The latest Schneider NW08H1 Air Circuit Breaker 800A - 3 Pole price in Pakistan is Rs. 759,000/- updated on October 24, 2026.
You can buy the Schneider NW08H1 Air Circuit Breaker 800A – 3 Pole online at Roshanex in Pakistan.
OVERVIEW:
- Circuit breaker Masterpact NW08H1 – 800 A – 3 poles – fixed – w/o trip unit
Documents:
Schneider NW08H1 Air Circuit Breaker 800A – 3 Pole Data Sheet.pdf
Capacitance
| Breaking capacity | 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2 |
Current AC
| [In] rated current | 800 A ( 40°C ) |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 352 mm |
| Pollution Degree | 4 conforming to IEC 60664-1 |
| Depth | 297 mm |
HARDWARE FEATURES
| Mounting Mode | Fixed |
| Network Type | AC |
| Protection Type | Without protection |
Type
| product or component type | Basic frame |
UC100
| Standards | IEC 60947-2 |
General Specification
| Connection pitch | 115 mm |
| Control Type | Push-button |
| Electrical Durability | AC-23A : 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A : 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-3 : 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Mechanical Durability | 12500 cycles without maintenance conforming to IEC 60947-2 25000 cycles with maintenance conforming to IEC 60947-2 |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Width | 422 mm |
| [Ics] Rated Service Breaking Capacity | Ics 65 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 65 kA 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 10000 cycles conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
OTHERS
| Certifications | ASTA |
