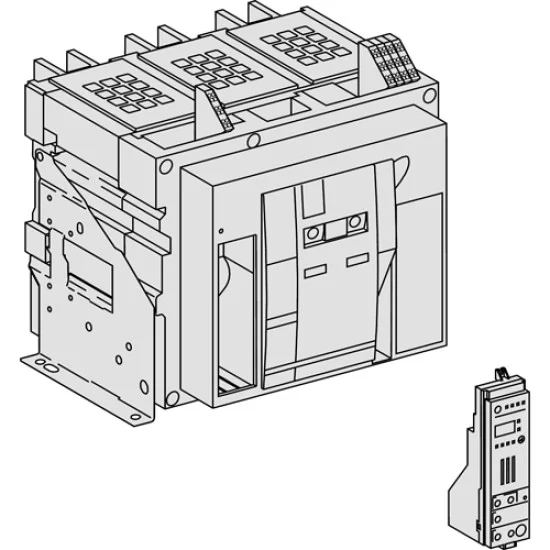

Schneider NW16H2 Air Circuit Breaker ACB 1600A 4P 48051
, ,

Schneider NW16H2 Air Circuit Breaker ACB 1600A 4P 48051

Compare

₨ 1,397,000

The latest Schneider NW16H2 Air Circuit Breaker ACB 1600A 4P 48051 price in Pakistan is Rs. 1,397,000/- updated on October 28, 2026.

You can buy the Schneider NW16H2 Air Circuit Breaker ACB 1600A 4P 48051 online at Roshanex in Pakistan.

OVERVIEW:

  • Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:

Schneider NW16H2 Air Circuit Breaker ACB 1600A 4P 48051 Data Sheet.pdf

Capacitance

Breaking capacity65 kA

Current AC

[In] rated current1600 A ( 40°C )

Summary

Height352 mm

HARDWARE FEATURES

Depth297 mm
Mounting ModeFixed
Network TypeAC
Protection TypeWithout protection
StandardsIEC 60947-2

Type

product or component typeBasic frame

General Specification

Control TypePush-button
Mechanical Durability12500 cycles without maintenance conforming to IEC 60947-2.
25000 cycles with maintenance conforming to IEC 60947-2
Network Frequency50/60 Hz
Poles Description4P
Width537 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage12 kV conforming to IEC 60947-2
[Ui] rated insulation voltage1000 V AC 50/60 Hz conforming to IEC 60947-2
