AC Breakers, Industrial Automation & Circuit Protection, SCHNEIDER ELECTRIC

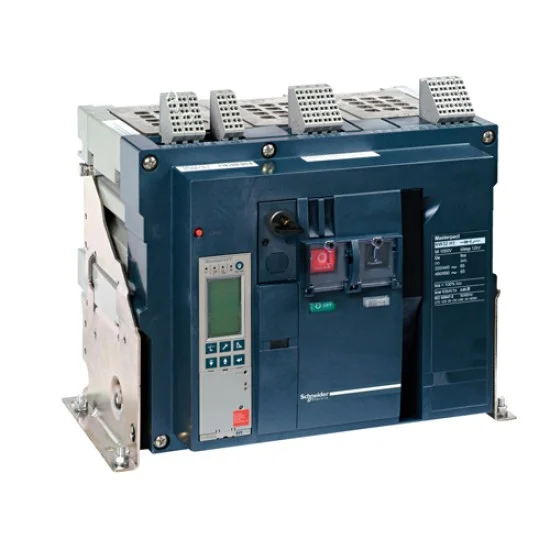

Schneider NW25H1 Air Circuit Breaker ACB 2500A 3P 48070
₨ 1,320,000
The latest Schneider NW25H1 Air Circuit Breaker ACB 2500A 3P 48070 price in Pakistan is Rs. 1,320,000/- updated on October 28, 2026.
You can buy the Schneider NW25H1 Air Circuit Breaker ACB 2500A 3P 48070 online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider NW25H1 Air Circuit Breaker ACB 2500A 3P 48070 Data Sheet.pdf
Capacitance
| Breaking capacity | 65 kA |
Current AC
| [In] rated current | 2500 A ( 40°C ) |
Summary
| Height | 352 mm |
HARDWARE FEATURES
| Depth | 297 mm |
| Mounting Mode | Fixed |
| Network Type | AC |
| Protection Type | Without protection |
| Standards | IEC 60947-2 |
Type
| product or component type | Basic frame |
General Specification
| Control Type | Push-button |
| Mechanical Durability | 10000 cycles without maintenance conforming to IEC 60947-2 20000 cycles with maintenance conforming to IEC 60947-2 |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Width | 422 mm |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
