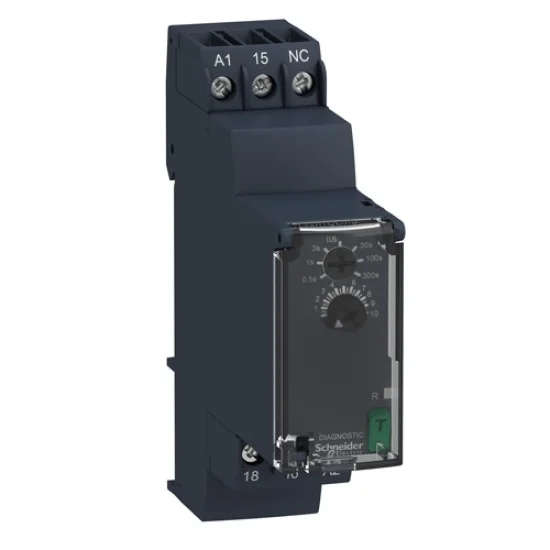

Schneider RE22R1QCMU Star-Delta Timing Relay
₨ 14,300
The latest Schneider RE22R1QCMU Star-Delta Timing Relay price in Pakistan is Rs. 14,300/- updated on October 28, 2026.
You can buy the Schneider RE22R1QCMU Star-Delta Timing Relay online at Roshanex in Pakistan.
OVERVIEW:
- 24VAC/DC & 220 – 240V AC; 1C/O, Star Delta Timing Relay.
Documents:
Summary
| Voltage range | 0.85…1.1 Us |
| Insulation Resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
HARDWARE FEATURES
| Mounting Support | 35 mm DIN rail conforming to EN/IEC 60715 |
| Supply Voltage | 24…240 V AC at 50/60 Hz |
| Mounting | Any position |
Output
| Dielectric Strength | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
TECHNICAL SPECIFICATION
| Time Delay | 0.05…0.5 s 0.1…1 s 0.3…3 s 1…10 s 10…100 s 3…30 s 30…300 s |
Type
| product or component type | Modular timing relay |
General Specification
| Connections – terminals | Screw terminals : 1 x 0.5…1 x 3.3 mm², AWG 20…AWG 12 solid cable without cable end Screw terminals : 2 x 0.5…2 x 2.5 mm², AWG 20…AWG 14 solid cable without cable end Screw terminals : 1 x 0.2…1 x 2.5 mm², AWG 24…AWG 14 flexible cable with cable end Screw terminals : 2 x 0.2…2 x 1.5 mm², AWG 24…AWG 16 flexible cable with cable end |
| Contact type | 1 C/O timed contact, cadmium free |
| Control Type | Rotary knob |
| Electrical Durability | 100000 cycles for 8 A at 250 V AC-1 100000 cycles for 2 A at 24 V DC-1 |
| Frequency | 50…60 Hz (+/- 5 %) |
| Mechanical Durability | 10000000 cycles |
| Power Consumption | 35 VA at 240 V AC in VA 0.6 W at 24 V DC in W |
| Tightening Torque | 0.6…1 N.m conforming to IEC 60947-1 |
| weight | 0.08 kg |
| Width | 22.5 mm |
| Input Voltage | <= 2.4 V |
