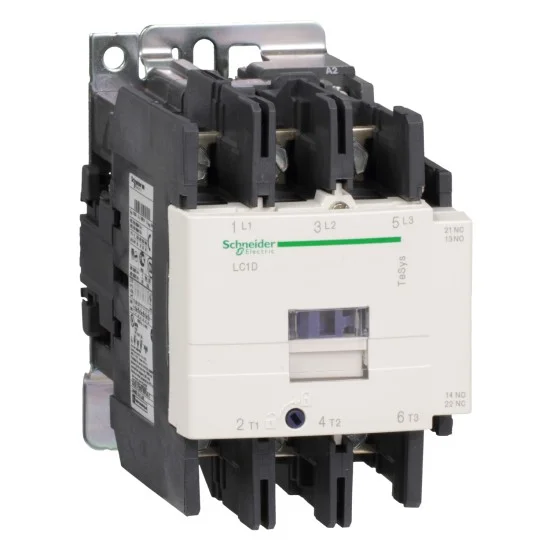

Schneider TeSys D Contactor ACB LC1D95M7
₨ 50,600
The latest Schneider TeSys D Contactor ACB LC1D95M7 price in Pakistan is Rs. 50,600/- updated on October 22, 2026.
You can buy the Schneider TeSys D Contactor ACB LC1D95M7 online at Roshanex in Pakistan.
OVERVIEW:
- Motor Power HP (UL / CSA):
- 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- 7.5 hp at 115 V AC 50/60 Hz for 1 phase motors
- 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
- 25 hp at 230/240 V AC 50/60 Hz for 3 phases motors
- 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors
- 60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- [Ui] Rated Insulation Voltage:
- 1000 V for power circuit conforming to IEC 60947-4-1
- 600 V for power circuit certifications CSA
- 600 V for power circuit certifications UL
- 690 V for signalling circuit conforming to IEC 60947-1
- 600 V for signalling circuit certifications CSA
- 600 V for signalling circuit certifications UL
Documents:
Capacitance
| Breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
Summary
| [Ie] rated operational current | 125 A (<= 60°C) at <= 440 V AC AC-1 for power circuit 95 A (<= 60°C) at <= 440 V AC AC-3 for power circuit |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO + 1 NC |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Weight | 0.86 kg |
Type
| product or component type | Contactor |
General Specification
| Electrical Durability | 1.2 Mcycles 95 A AC-3 at Ue <= 440 V 1.3 Mcycles 125 A AC-1 at Ue <= 440 V |
| Poles Description | 3P |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| [Ue] Rated Operational Voltage | <= 300 V DC 25…400 Hz for power circuit <= 1000 V AC for power circuit |
