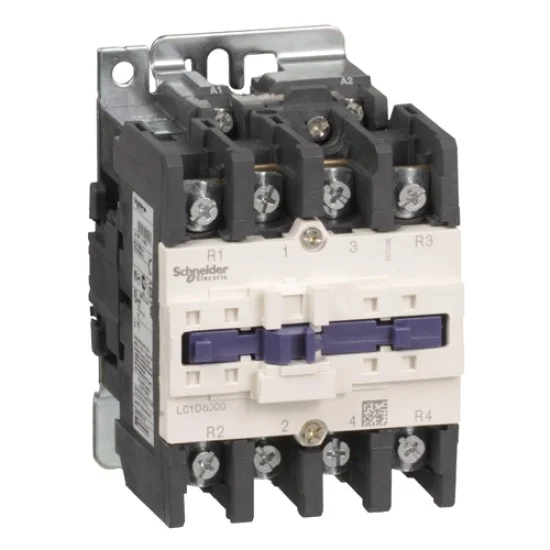

Schneider TeSys D Contactors LC1D80004G7
₨ 37,500
The latest Schneider TeSys D Contactors LC1D80004G7 price in Pakistan is Rs. 37,500/- updated on October 23, 2026.
You can buy the Schneider TeSys D Contactors LC1D80004G7 online at Roshanex in Pakistan.
OVERVIEW:
Connection Terminals:
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – with cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: solid – without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: solid – without cable end
- Power circuit : connector 1 cable(s) 2.5…10 mm² – cable stiffness: flexible – without cable end
- Power circuit : connector 2 cable(s) 2.5…10 mm² – cable stiffness: flexible – without cable end
- Power circuit : connector 1 cable(s) 2.5…10 mm² – cable stiffness: flexible – with cable end
- Power circuit : connector 2 cable(s) 2.5…10 mm² – cable stiffness: flexible – with cable end
- Power circuit : connector 1 cable(s) 2.5…16 mm² – cable stiffness: solid – without cable end
- Power circuit : connector 2 cable(s) 2.5…16 mm² – cable stiffness: solid – without cable end
Documents:
Summary
| [Ie] rated operational current | 125 A (<= 140 °F (60°C)) at <= 440 V AC AC-1 power circuit |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO + 1 NC |
Type
| product or component type | Contactor |
General Specification
| Connections – terminals | Control circuit: screw clamp terminals 2 cable(s) 0…0 in² (1…2.5 mm²) – cable stiffness: flexible – with cable end |
| Mechanical Durability | 4 Mcycles |
| Poles Description | 4P |
| Tightening Torque | Power circuit: 79.65 lbf.in (9 N.m) – on connector – with screwdriver flat Ø 6 to Ø 8 mm |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| [Ue] Rated Operational Voltage | <= 690 V AC power circuit <= 300 V DC 25…400 Hz power circuit |
