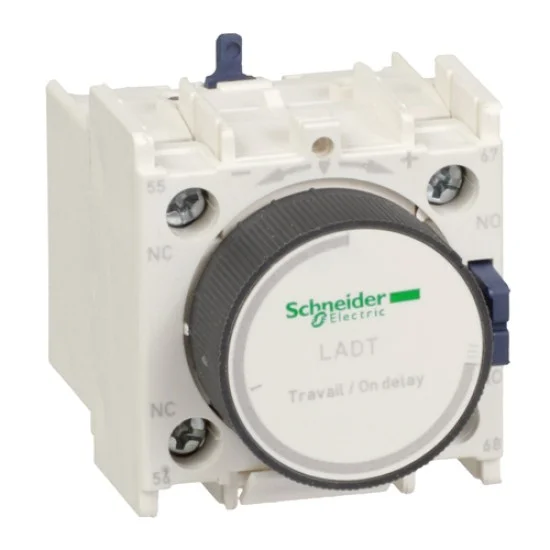

Schneider Time Delay Screw Clamps ACB LADT0
₨ 12,100
The latest Schneider Time Delay Screw Clamps ACB LADT0 price in Pakistan is Rs. 12,100/- updated on October 22, 2026.
You can buy the Schneider Time Delay Screw Clamps ACB LADT0 online at Roshanex in Pakistan.
OVERVIEW:
Permissible Short-time Rating:
- 100 A at 60°C 1 s
- 120 A at 60°C 500 ms
- 140 A at 60°C 100 ms
Connection Terminals:
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – without cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – with cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – without cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – with cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – without cable end
Documents:
Summary
| Poles configuration | 1 NO + 1 NC |
| Range | TeSys |
| Weight | 0.05 kg |
HARDWARE FEATURES
| Auxiliary Contact Composition | Instantaneous |
| IP degree of protection | IP2x conforming to VDE 0106 |
Type
| product or component type | Time delay auxiliary contact block |
General Specification
| Connections – terminals | Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end |
| Mechanical Durability | 30 Mcycles |
| [Ue] Rated Operational Voltage | 690 V AC 25…400 Hz |
| [Ui] rated insulation voltage | 690 V – conforming to IEC 60947-5-1 600 V – certifications CSA 600 V – certifications UL |
