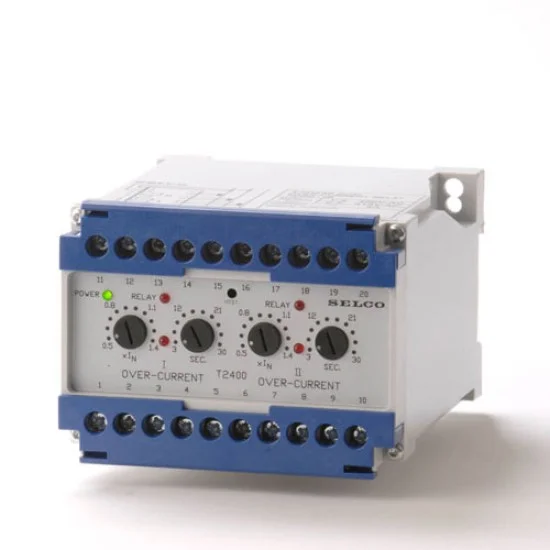

Selco T2400.0050 Dual Overcurrent Relay
The latest Selco T2400.0050 Dual Overcurrent Relay price in Pakistan is Call for Price updated on September 11, 2026.
OVERVIEW:
- The SELCO T2400 consists of two combined over current relays, intended for protection, or monitoring of generators, power transmissions and consumer supply.
- A typical application for protection of a generator is for one of the over current functions to trip the generator breaker and the other over current function to trip a nonessential service. Both over current functions could be used to trip 2 levels of nonessential load. The relay detects the highest of the 3 input currents and, on exceeding the preset values, output relays will be activated after preset time delays.
Features:
- Protection of generators against overcurrent
- Trip of non essential services at peak loads
- Price competitive, due to the combined features
- Visual indication of power, pick-up and relay tripping on both relays
Documents:
POWER
| Consumption | Voltage 5VA at UN Current 0.3VA at |
Summary
| Voltage range | 60 – 110% |
| Weight | 0.5kg |
HARDWARE FEATURES
| Supply Voltage | 415/480V. |
TECHNICAL SPECIFICATION
| Maximum Voltage | 660V |
| Operating Temperature | -20°C to +70°C |
General Specification
| Contacts | Rating : AC: 400V, 5A, 2000VA, DC: 150V, 5A, 150W |
| Model | T2400.0050 |
| Output Relay | Normally de-energized |
| Type | Dual Overcurrent Relay |
| Dimensions | 70 x 100 x 115mm (H x W x D) |
WIRELESS FEATURES
| Frequency Range | 45 – 400Hz |
