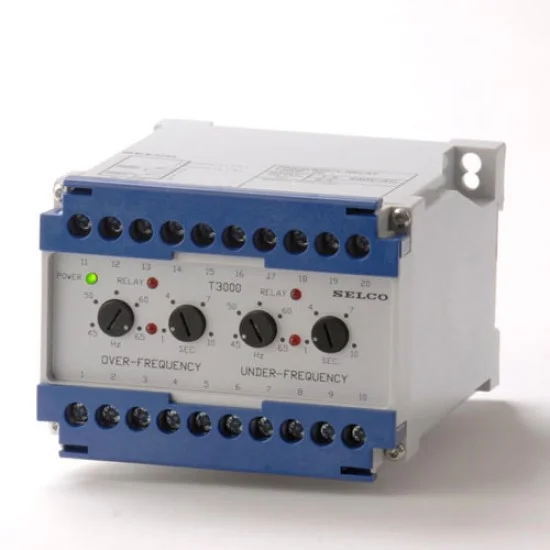

Selco T3000.0040 Frequency Relay
, ,

Selco T3000.0040 Frequency Relay

Compare

The latest Selco T3000.0040 Frequency Relay price in Pakistan is Call for Price updated on September 10, 2026.

OVERVIEW:

  • The SELCO T3000 is intended for effective frequency surveillance on generators, busbar or other distribution systems. The relay contains the functions “under frequency” and “over frequency” time delayed, and 2 individual output relays, one relay for each function.

Features:

  • Price competitive due to combined functions
  • Visual indication of power, pick-up and relay tripping on both relays
  • High prection digital countdown timer for delayed output
  • Accepts high supply voltage variations: 70-110%
Documents:

Selco T3000.0040 Frequency Relay Data Sheet.pdf

POWER

Consumption5VA at UN

Summary

Voltage range70 – 110%
Weight0.5kg

HARDWARE FEATURES

Supply Voltage415/480V.

TECHNICAL SPECIFICATION

Maximum Voltage660V
Operating Temperature-20°C to +70°C

General Specification

ContactsRating : AC: 250V, 2A, 250VA,
DC: 60V, 2A, 100W
ModelT3000.0040
Output RelayNormally energized
TypeFrequency Relay.
Dimensions70 x 100 x 115mm (H x W x D)

WIRELESS FEATURES

Frequency Range40 – 70Hz
