Earth & Insulation Tester, Industrial Meter, Sew

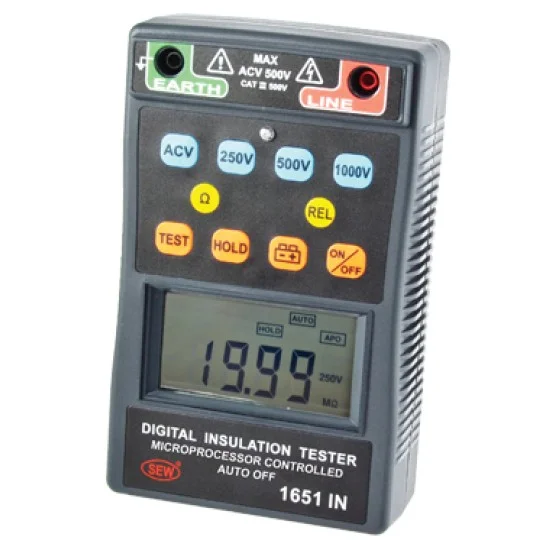

SEW 1651 IN Digital (Up to 1kV) Insulation Tester
₨35,000.00
The latest SEW 1651 IN Digital (Up to 1kV) Insulation Tester price in Pakistan is Rs. 35,000/- updated on June 25, 2026.
FEATURES:
- Microprocessor-controlled.
- ACV auto-detection function on 3 insulation ranges (250/500/1000V) and low Ω ragne before pressing the TEST button.
- 68 x 34mm large LCD display.
- 3½ digital LCD (2000 counts) a LCD indicated instrument for insulation(MΩ), continuity (Ω) and AC voltage.
- Three insulation test voltages(DC V) : 250V, 500V, 1000V.
- Auto ranging.
- Auto power off function.
- Auto data hold function.
- Rel function (ohm only)
- Continuity buzzer.
- External AC voltage warning.
- Automatic circuit discharge.
- BS 16th edition.
Documents:
SEW 1651 IN Digital (Up to 1kV) Insulation Tester Data Sheet.pdf
Summary
| Resolution | 0-20.00MΩ : 10kΩ 0-200.0MΩ : 100kΩ 0-2000MΩ : 1MΩ |
| Test Voltage | 250V / 500V / 1000V |
| Power Source | 1.5V (AA ) Ă— 6 |
| Continuity | 20Ω / 200Ω / 2000Ω |
| Output Current | 1mA DC |
General Specification
| AC voltage Accuracy | ±(1.5%rdg+3dgt) |
| AC voltage range | 0-600V |
| Accuracy | 20MΩ : ±(1.5%rdg+2dgt) 200MΩ : ±(2.5%rdg+2dgt) 2000MΩ : ±(5%rdg+3dgt) |
| Measuring ranges | 0-20.00MΩ 0-200.0MΩ 0-2000MΩ |
| Weight | 470g |
| Dimensions | 163(L) Ă— 102(W) Ă— 50(D)mm |
| Output Voltage | Rated test voltage +10% |
