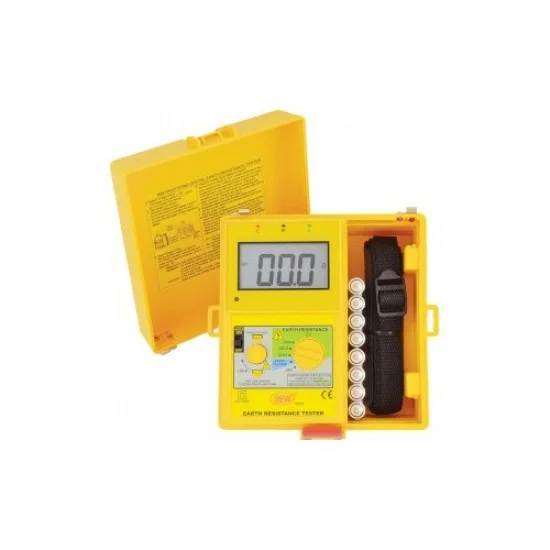

SEW 1820 ER 3 Wire Digital Earth Resistance Tester
₨ 34,000
The latest SEW 1820 ER 3 Wire Digital Earth Resistance Tester price in Pakistan is Rs. 34,000/- updated on October 20, 2026.
OVERVIEW:
- The SEW 1820 ER meter is used to measure the ground resistance to 2000 Ω using a two-wire circuit (RUGBT mode) and a three-wire circuit (EXACTLY mode), as well as a step voltage up to 200 V.
Features:
- Capable of measuring earth resistance and earth voltage.
- 2 mA measuring current permits the testing of earth
- resistance without tripping earth leakage current
- breakers in the circuit under test.
- The test leads are supplied as standard accessories for
- simplified two-wire measuring system.
- Battery operated.
- Data hold function.
- Low battery indication.
- Calibration performed with supplied test leads.
Also, you can browse more SEW products at Roshanex. In addition, our team can help you choose the right model before you order.
Summary
| Low battery indication | ” HOLD “symbol appears on the display |
| Safety Standard | EN 61010-1 CAT II 300V IEC 61557-1 IEC 61557-5 EN 61326-1 |
| Accuracy | Earth resistance ±(2%rdg+2dgt) or ±0.1Ω, which is greater Earth voltage ±(1%rdg+2dgt) |
| Measuring range | Earth resistance 0-20Ω / 0-200Ω / 0-2000Ω Earth voltage 0-200 Vac(40-500Hz) |
| Weight | Approx.1040g |
| Measuring Current | Earth Resistance by constant current inverter 820Hz approx. 2mA |
| Output Voltage on Open Circuit | LED will be unlit |
| Power Source | 1.5V (AA) × 8 |
HARDWARE FEATURES
| Data hold indication | ” – , + “symbol appears on the display |
| Earth resistance resolution | 0-20Ω : 0.01Ω 0-200Ω : 0.1Ω 0-2000Ω : 1Ω |
| Over range indication | “1”(MSD) |
TECHNICAL SPECIFICATION
| Display | 3½ digit (2000 counts) |
General Specification
| Dimensions | 170(L) × 165(W) × 92(D)mm |
