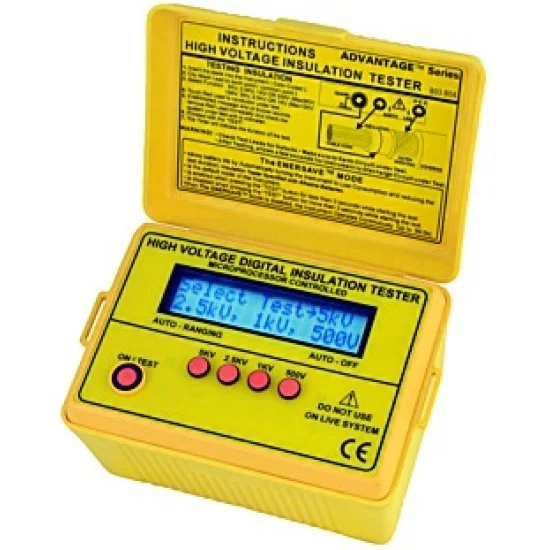

The latest SEW 2803 IN Digital Insulation Tester price in Pakistan is Rs. 110,000/- updated on August 29, 2026.
OVERVIEW:
- Insulation Tester, 5000 V, EnerSave feature, Controlled by a microprocessor, Auto-ranging / auto-off.
Features:
- Microprocessor-controlled.
- Four insulation test voltages.
- Insulation resistance; auto ranging on all ranges.
- Bargraph indicates test voltage; rise and decay can be observed during tests.
- Visual and audible warning if external voltage is present.
- EnerSave™ feature to extend battery life.
- 2 Lines × 16 characters large LCD.
- Low battery consumption.
- Low battery indicator.
- Overload protection.
- Auto-off.
- Show test time duration (up to 99.9s) for easy comparison.
- EEPROM calibration.
- Built-in carry case and test leads in separate pouch.
Documents:
POWER
| DC Voltage | 0.5kV / 1kV / 2.5kV / 5kV |
Summary
| Measuring range | 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ |
| Safety Standard | EN 61010-1 EN 61326-1 |
| Accuracy | 0-50GΩ : ±3% rdg 50-250GΩ : ±5% rdg |
| Power Source | 1.5V(AA) × 8 Alkaline batteries |
General Specification
| Dimensions | 170(L) × 120(W) × 95(D)mm |
