The latest SEW 6470 BT Battery Tester price in Pakistan is Rs. 41,500/- updated on June 24, 2026.
OVERVIEW:

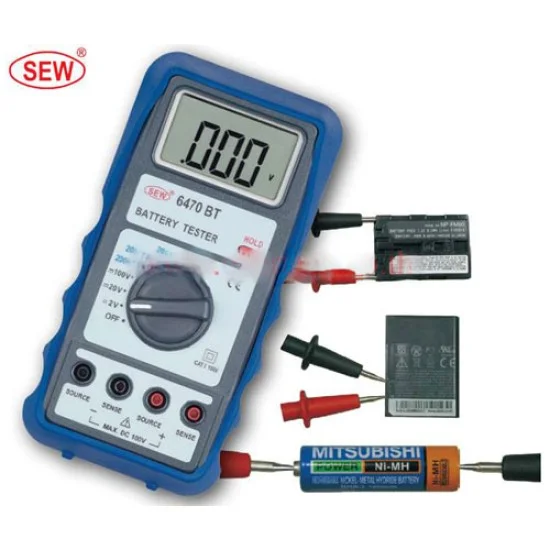

- 6470 BT battery resistance tester can measure rechargeable battery resistance and DC voltage on line. Resistance measure signal use 1kHz AC frequence. Test lead used 4-wire measurement method can reduce contact resistance and lead resistance, measuring secondary batteries including Ni-cd, Ni-MH, Li-ion.
Features:
- 2000 counts LCD.
- DC Voltage measurement.
- 4-wire resistance measurement.
- Data hold function.
- Low battery indication.
- 9V DC power supply.
- Measure battery types: Li-ion, Ni-Cd, Ni-MH
- Simple operation.
- Lead resistance and contact resistance eliminated
Documents:
Summary
| Low battery indication | sign appears on the display when the battery voltage drops below accurate operating level. |
| Resistance Accuracy | ±(3%rdg+3dgt) | ±(3%rdg+3dgt) | ±(3%rdg+3 dgt) |
| Safety Standard | EN 61010-1 CAT I 100V EN 61326-1 |
| Weight | (Battery Include) : Approx. 360g |
| Power Source | 9V(6F22) Ă— 1 |
TECHNICAL SPECIFICATION
| Resistance Range | 200mΩ | 2000mΩ | 20Ω |
| Resistance Resolution | 0.1mΩ | 1mΩ | 10mΩ |
General Specification
| DC Range | 2V | 20V | 100V |
| DC Accuracy | ±(1%rdg+1dgt) | ±(1%rdg+1dgt) | ±(1%rdg+1dgt) |
| DC Resolution | 1mV | 10mV | 100mV |
| Dimensions | 192(L) Ă— 88.6(W) Ă— 45.2(D)mm |
