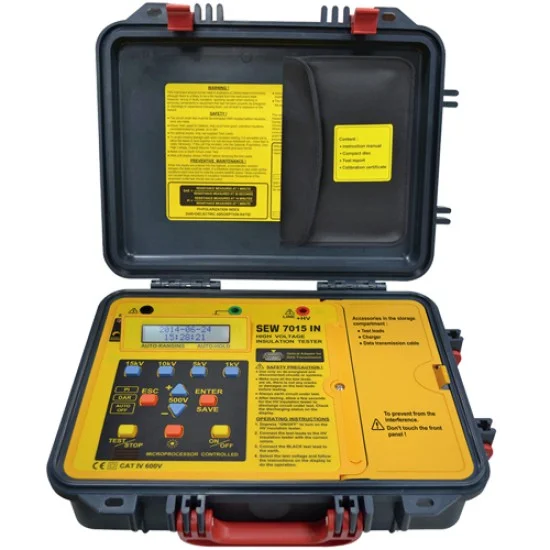

SEW 7015IN Digital 15kV High Voltage Insulation Tester

The latest SEW 7015IN Digital 15kV High Voltage Insulation Tester price in Pakistan is Rs. 600,000/- updated on August 30, 2026.

OVERVIEW:

• The SEW 7015IN High Voltage Insulation Tester is provided with a guard rail to eliminate surface leakage when testing insulation resistance of assets such as PILC cables. Internal data storage can hold 200 measurements, and the instrument’s optical USB to RS-232 transmission
• port allows data export to PCs via SEW’s standard CD-supplied software.
• Standard features of the SEW 7015IN High Voltage Insulation Tester include an AC/DC voltmeter as well as audible alarm for live circuits, auto ranging on all insulation resistance ranges with auto hold to freeze readings, bar graph display allowing visual observation of charging patterns, overload protection, calendar and auto-power off.

Features:

• Test Insulation Resistance up to 2 TΩ (2000GΩ).
• Short-circuit current up to 5mA.
• Microprocessor controlled.
• AC/DC Voltmeter.
• PI (Polarization Index) indication.
• DAR (Dielectric Absorption ratio) indication.
• Auto-ranging on all insulation ranges.
• Backlight function.
• Bargraph indicates test voltage, rise and decay can be observed.
• Menu driven.
• Visual and audible warning if external voltage is present. (≥30Vac or ≥30Vdc).
• Auto-hold function to freeze the reading.
• Overload protection.
• Adjustment for testing time (duration) : 1~30 minutes.
• Auto-off.
• Calendar.
• Optical USB to RS-232 data transmission.
• 200 measurement results can be saved in the memory and recalled on the display.
• Safety standard: EN 61010-1   CAT IV 600V EN 61010-2-030 EN 61326-1
