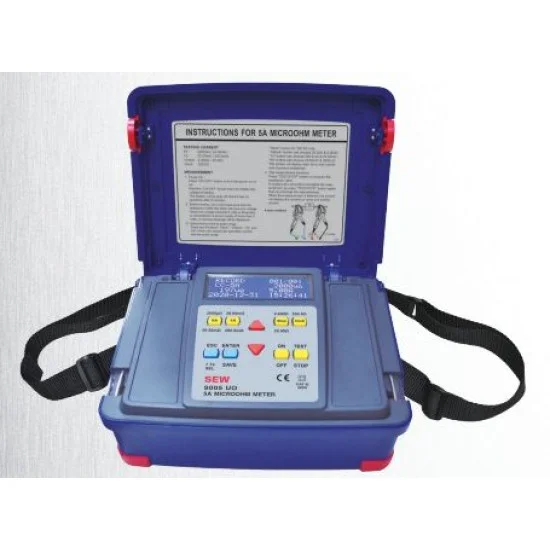

The latest SEW 9005 UO 5 Amp Digital Microohmmeter price in Pakistan is Rs. 205,000/- updated on June 24, 2026.
OVERVIEW:
- This Milliohm Meter lets the user quickly check contact resistance in critical electrical connections, test windings that are open or short in motors, generators and transformers, wire-to-wire connection resistances and heating elements testing. Includes an extra large set of Kelvin Clamps, standard kelvin clips and 4 wire test lead set.
Features:
- 4-Wire method for mΩ.
- Includes Kelvin Clamp test probes
- 5A output offers 20000μΩ range with 1 μΩ resolution
- 5A, 1A, 100mA and 10mA test ranges
- Large LCD Display(2.6 Ă— 1.3 Inch)
- Store up to 200 measurment results internally
- Low battery indication
- Meets Safety Standards EN 61010-1 and EN 61325-1
Documents:
Summary
| Safety Standard | IEC/EN 61010-1 CAT III 300V EN 61326-1 |
General Specification
| Accuracy | ±(1% + 4 dgt) |
| Operating Humidity | 80% RH |
| Operating Temperature | 0~40°C |
| Power Source: | 1.5V ‘C’ alkaline battery Ă— 8 |
| Dimensions | 322(L) Ă— 260(W) Ă— 135(D)mm |
