The latest Sigma SND6000 Four Pole Miniature Circuit Breaker price in Pakistan is Rs. 6,330/- updated on October 20, 2026.
OVERVIEW:

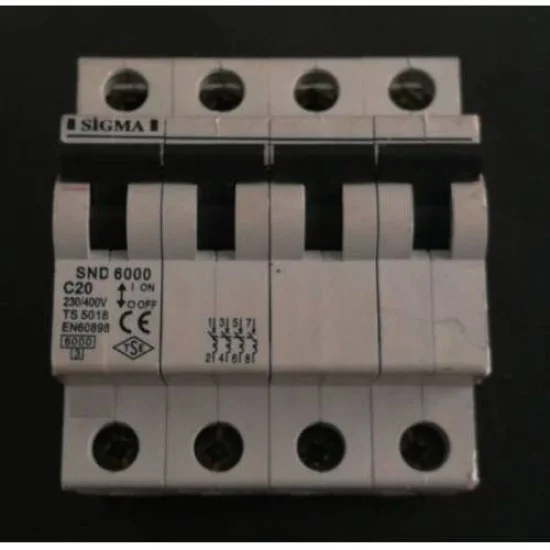

- Sigma SND6000 Four Pole Miniature Circuit Breaker
- Explore roshanex.pk find out latest Sigma products & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We are dealing Sigma in Pakistan.
Documents:
Sigma SND6000 Four Pole Miniature Circuit Breaker Data Sheet.pdf
POWER
| Ampere | 6, 10, 16, 20, 25, 32, 40, 50, 63, 80,100 Amp |
HARDWARE FEATURES
| Number of Poles | 4 Poles |
TECHNICAL SPECIFICATION
| Rated Breaking Capacity | Icn kA: 6 |
| Rated impulse voltage | Uimp kV : 6 |
| Rated Insulation Voltage | Ui V: 690 |
| Rated Voltage | Ue AC (V) : 415 |
| Sensitivity Class | 3 |
| Storage temperature | between -40 and +55 C |
General Specification
| Ambient Operating Temperature | between -5 and +40 C |
| Assembly | (EN 60715) : 35 mm DIN Rail |
| Protection Class | IP 20 |
| Type | Miniature Circuit Breaker |
