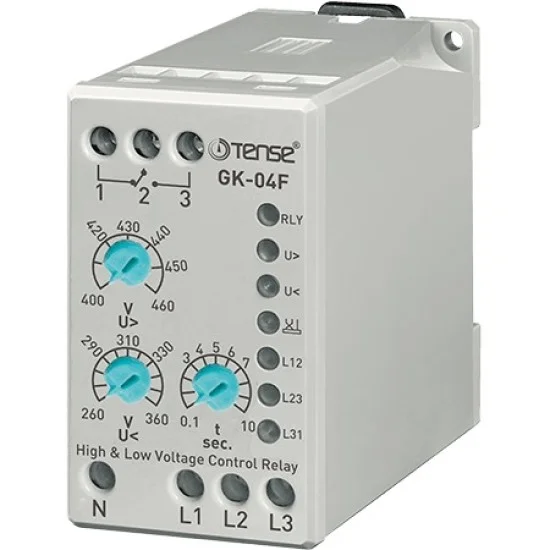

The latest Tense GK-04F Under Over Three Phase Voltage Relays price in Pakistan is Rs. 12,500/- updated on June 24, 2026.
OVERVIEW:
- Voltage control relays are designed to protect devices with sensitive operating voltage from damage caused by mains voltage.
Feature:
- Phase Sequence Control
- Non-Neutral
- General Connection diagram for GK-04F
- network voltage for the devices which have sensitive working voltage.
- Using Manual and Working Principle
- Make the connections according to the diagram. Set the device according to the required electrical charge.
- if the voltages are the same as adjusted, relay led switches on and relay pulls.
- In this case contact, out is
- (NC) 1 pole. GK-04F type voltage controller relay doesn’t work if the phase sequence is incorrect.
TECHNICAL SPECIFICATION
| Over voltage | 400V – 460V AC |
| Under Voltage | 260V – 360V AC |
General Specification
| Error Waiting Time | 0,1sec. – 10sec. (Adjustable) |
| Type | Under Over Three Phase Voltage Relays |
