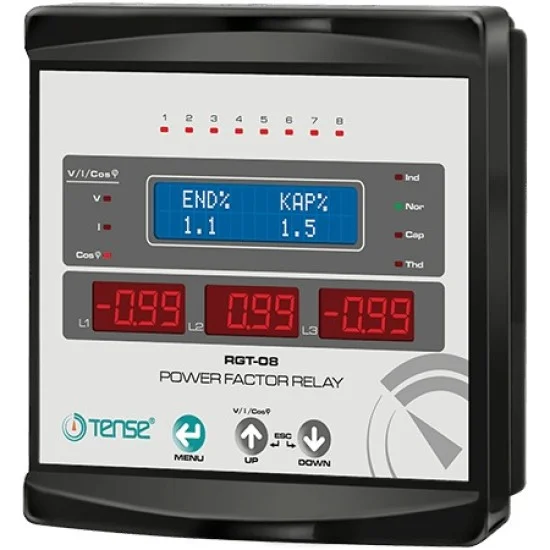

Tense RGT-08 Three-Phase Reactive Power Control Relay

The latest Tense RGT-08 Three-Phase Reactive Power Control Relay price in Pakistan is Rs. 71,550/- updated on August 31, 2026.

OVERVIEW:

• Reactive power control relays are designed for the purpose of reducing the reactive powers (inductive and capacitive) not used by the loads and drawn from the network. If inductive power is drawn from the network, it intervenes by drawing a capacitor in the suitable value. If the capacitive power is drawn from the network, it intervenes by drawing shunt reactor in suitable value. It tries to reduce the inductive/active and capacitive/active rates of the system this way.

Features:

• Easy Installation and Operation with 2×16 LCD Display
• 3×4 Digit Led Display, Information and Warning LED Display
• Intervention, Discharge, and Settling Times can be Adjustable
• Manual Step Value Enterable
• Single, Two, and Three Phase Capacitor and Shunt Reactor can be Connected
• Cosine Values of Each Phase can be Observed
• Capacitive/Active and Inductive/Active Ratios can be Observed
• Total Energies (Import/Export) can be Observed.
• THD-I value can be Observed
• Creating Power Analysis (20 samples 9999 min.)
• Current and Voltage Values of Each Phase can be Observed.
• Password Protected Menu
• Same Aging in Steps
