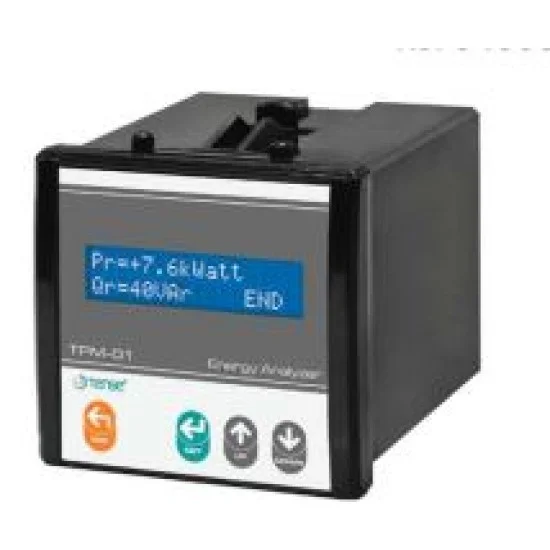

Tense TPM-01 Energy Analyzer

The latest Tense TPM-01 Energy Analyzer price in Pakistan is Rs. 34,680/- updated on August 31, 2026.

OVERVIEW:

• Energy analyzers are designed to measure and monitor electrical values. With the communication feature, energy measurements can be monitored and reported independently. With energy analyzers, analyzes such as energy quality, efficiency and unit cost calculation can be performed. TPM-01 energy analyzer measures load or voltage, current, cosφ, power factor, active power, reactive power, minimum and maximum values of the load and also measure demands.

Features:

• Easy Installation and Operation with 2×16 LCD Display
• With 3-Phase Voltage and 3-Phase Current Transformers
• Easy-To-Use Turkish Menu
• It Shows Per-Phase and Total Active Powers (P, ΣP)
• It Shows Per-Phase and Total Reactive Powers (Q, ΣQ Inductive and Capacitive)
• It Shows Cosφ and Power Factor Values of Each Phase
• It Shows Voltage (V) and Current (I) Values of Each Phase
• It Shows Total Import and Export Active Energy (ΣkWh) Values
• It Shows Total Inductive and Capacitive Reactive Energy (ΣkVArh) Values
• It Shows the Minimum and Maximum Values
• It Shows Demand Values
• You Can Reset the Energy Values
• The Demand Drawing Time Can Be Adjusted
