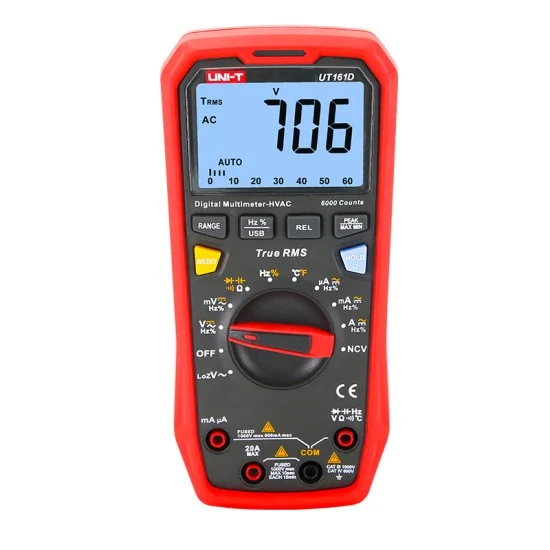

Uni-T UT161D True RMS Digital Multimeter
₨20,400.00
The latest Uni-T UT161D True RMS Digital Multimeter price in Pakistan is Rs. 20,400/- updated on June 24, 2026.
OVERVIEW:
- UT161D Series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
- UNI-T UT161D is a True RMS digital multimeter that can measure AC/DC voltage/current, resistance, capacitance, frequency, duty ratio, and temperature and test diodes, transistors, and continuity. Equipped with sonic/visual alarm to provide a warning when measuring high voltage/current and temperature. A wide range of embedded features makes it a practical measuring tool for many application areas.
Features:
- True RMS;
- non-contact voltage (NCV) measurement function with sonic/visual alarm;
- measurement of low impedance alternating current voltages (LoZ ACV);
- peak hold function;
- Max/Min/Relative mode measurements;
- full-scale overload protection;
- data hold and USD connectivity;
- Low battery indication;
- Auto power off;
- Gold plated test leads;
- Quality pointer display with high resolution
Current AC
| AC Voltage | up to 1000 V |
POWER
| DC Current | 10 A ±(1%+2) 20 A |
Summary
| Duty Cycle | 0.1% ~ 99.9% ±(2%+5) |
Antenna
| Capacitance | 60 mF ±(3%+5) 220 mF |
TECHNICAL SPECIFICATION
| Power | 1.5 V battery (R03) |
General Specification
| AC Current range | 10 A ±(1.2%+5) 20 A |
| Display count | 6,000 |
| Frequency | up to 10 MHz |
| Resistance | up to 60 MOhm |
| Temperature | -40°C ~ 1000°C ±(1%+3) -40°F ~ 1832°F ±(1%+6) |
| Type | True RMS Digital Multimeter |
| Dimensions | 190 mm Ă— 90 mm Ă— 50 mm |
