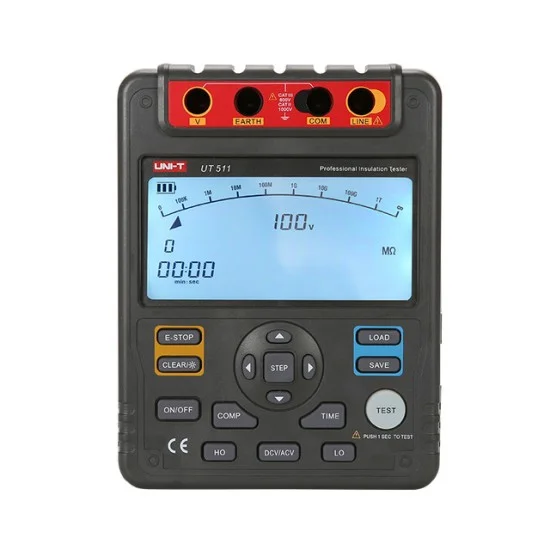

UNI-T UT511 Insulation Resistance Tester
₨28,800.00
The latest UNI-T UT511 Insulation Resistance Tester price in Pakistan is Rs. 28,800/- updated on June 24, 2026.
FEATURES:
- Auto Range: √
- Auto Power Off: √
- Low Battery Indication: √
- Data Logging: 18
- Comparison: √
- Polarization Index(PI): √
- Dielectric Absorption (DAR): √
- LCD Backlight: √
- Analogue Bar Graph: 30
- Over Range Warning: √
- High Voltage Indication: √
- Timer: Around 30 minutes
Documents:
Summary
| DC Voltage | 1000V ±(2%+3) |
| Low Resistance | 0.1~999.9Ω ±(1%+3) |
| AC Voltage | 750V ±(2%+3) |
| Weight | 1.2Kg |
| Insulation Resistance | Test Voltages: 100V/250V/500V/1000V 0%~20% 100V 0.1MΩ~500MΩ ±(3%+5) 250V 0.5MΩ~2GΩ ±(3%+5) 500V 1MΩ~4GΩ ±(3%+5) 1000V 2MΩ~10GΩ ±(3%+5) Short Circuit Current: <2mA |
| Size | 202mm x 155mm x 94mm |
TECHNICAL SPECIFICATION
| LCD screen | 123mm x 58mm |
