The latest Uni-T UT601 Inductance Capacitance Meter price in Pakistan is Rs. 7,440/- updated on September 2, 2026.
OVERVIEW:

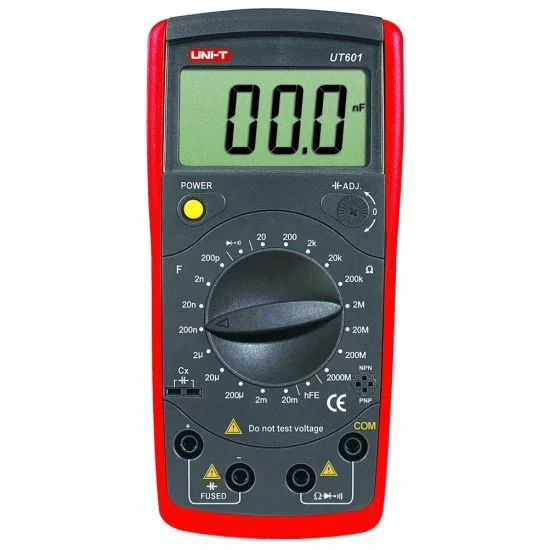

- The UT601 series from UNI-T are compact hand-held capacitance meters with a good price/quality ratio. These meters can easily measure the capacitance of a component. In addition, the meter can also indicate resistance and continuity. The 2,000-counts” display is all you need for basic applications.
- The UT601 can also measure the hFE of a pnp or npn-transistor.
Features:
- Functions: resistance, capacitance, continuity test (with buzzer), diode test, transistor test
- Manual ranging
- Low battery indication
Documents:
Display Specification
| Display | 3½ (1999) digit LCD, 61 × 32 mm |
Summary
| Resistance Accuracy | ±(0.8%+1) |
TECHNICAL SPECIFICATION
| Resistance Range | 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ |
| Sampling Rate | 2-3x/s |
General Specification
| Capacitance Accuracy | ±(1%+5) |
| Capacitance Range | 200 pF / 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF |
| Power | 9V battery: NEDA 1604, 6F22 or 006P |
| Weight | 312g |
| Dimensions | 172 × 83 × 38 |
