The latest Uni-T UT612 LCR Meter price in Pakistan is Rs. 35,650/- updated on June 24, 2026.
OVERVIEW:

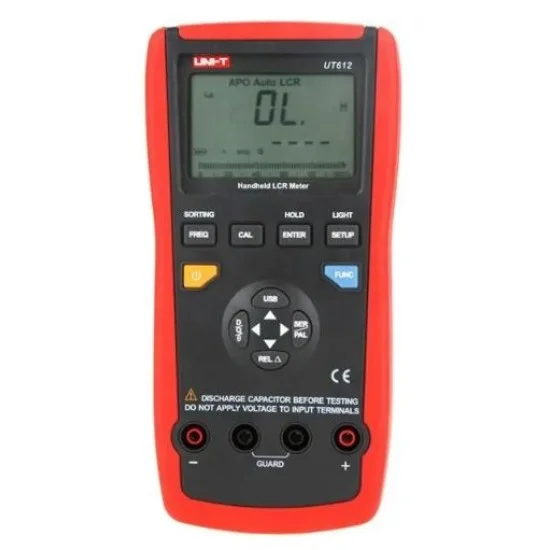

- The UT612 from UNI-T is a LCR meter with a good price/quality ratio. This meter is designed to accurately measure not only the capacitance, inductivity and resistance, but also the ESR of components. This allows the meter to calculate a corresponding quality factor, dissipation and phase angle. The 612 can perform these measurements at 5 frequencies and the dual display can show two values simultaneously. The main display has 20,000 counts,” and the secondary 2,000.
- Measurements can often be made while the components are in the circuit because the UT612 uses a measuring voltage of only 0.6 V.
Features:
- Display count 19999
- D/Q display count 1999
- D/Q resolution 0.001
- Auto range
- Real-time display test frequency
- Measurement mode: series/parallel
- Auto power off
- Low battery indication
- Data Hold
- Relative mode
- USB interface
- USB interface / PC data records 60000
- LCD backlight
- Analogue Bar Graph 26
- Deviation ratio measurement
- Screening function
- Calibration function
- Output impedance 120Ohm
- Auto LCR smart check and measurement
