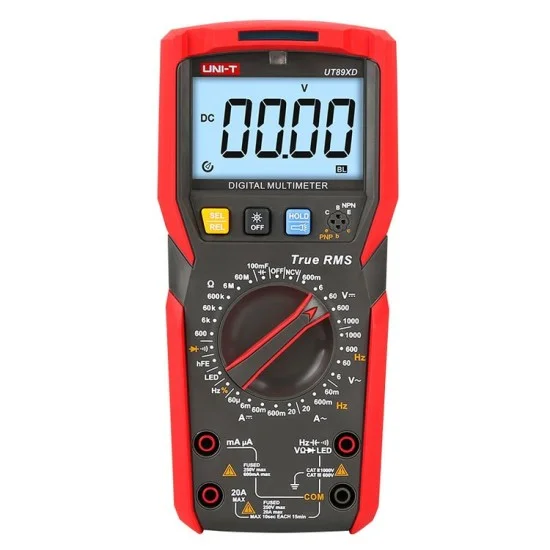

Uni-T UT89XD Digital Multimeter
₨7,680.00
The latest Uni-T UT89XD Digital Multimeter price in Pakistan is Rs. 7,680/- updated on June 25, 2026.
OVERVIEW:
- UNI-T UT89XD is a reliable handheld multimeter with true RMS measurement. It can measure max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, temperature, diode, hFE, continuity and NCV, quickly and accurately distinguish between neutral and live wires. It can also perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this meter can be used in dark environment.
Features:
- Measure AC/DC voltage up to 1000 V, AC/DC current up to 20 A.
- True RMS.
- Dual range NCV test which quickly identifies neutral and live wires through light intensity.
- LED measurement, diode test, transistor hFE.
- Continuity test.
- Audible/visual alarm
- Capacitor charging indicator.
- Function selection (SELECT).
- Ergonomic design.
- Double injection molding.
- 1 m drop proof.
- Flashlight; auto backlight.
- Data hold.
- Auto power off.
- Low battery indication.
Display Specification
| Display | LCD, 61 Ă— 36 mm, 6000 count |
Summary
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| AC Voltage | 6 V / 60 V / 600 V / 1000 V |
| DC Current | 60 ÎĽA / 6 mA / 60 mA / 600 mA / 20 A |
| AC Current | 60 mA / 600 mA / 20 A |
Antenna
| Capacitance | 6 nF / 60 nF / 600 nF / 6 ÎĽF / 60 ÎĽF / 600 ÎĽF / 6 mF / 60 mF / 100 mF |
| Frequency | 9.999 Hz / 9.999 MHz |
TECHNICAL SPECIFICATION
| Sampling Rate | 3 times/s |
General Specification
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Weight | 345 g |
| Dimensions | 189 Ă— 89 Ă— 53 mm |
| Power Supply | 1.5V battery (R03) Ă— 4 |
