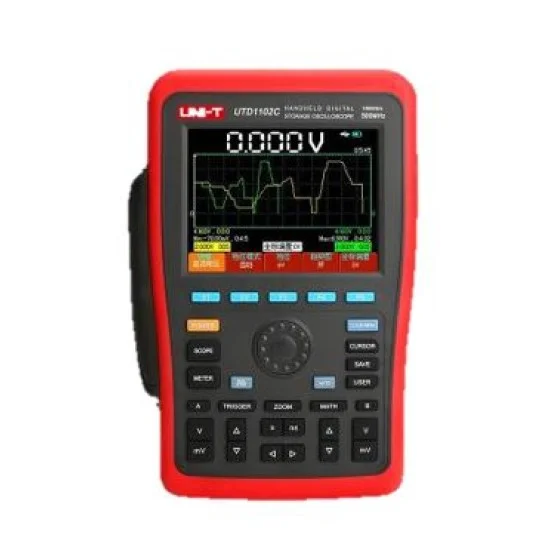

Uni-T UTD1102C Handheld Digital Storage Oscilloscope
₨178,200.00
The latest Uni-T UTD1102C Handheld Digital Storage Oscilloscope price in Pakistan is Rs. 178,200/- updated on August 30, 2026.
OVERVIEW:
- UNI-T UTD1102C handheld digital oscilloscope is a dual channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate and 2 × 512 K memory length. There is USB host for external devices connection. UNI-T UTD1102C digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check.
Features:
- Dual channel bandwidth 100 MHz
- Sampling rate 500 MS/s
- Equivalent sampling rate 25 GS/s
- 5 mathematic functions: adding, subtraction, multiplying, division, FFT
- Multimeter functions
- Continuity buzzer
- Diode check
- Internal memory 2 × 512 k
- Two switchable probes
- Trend diagram
- 5.7″ color LCD screen
- Built-in USB host
Computers Specs
| Color | Red and grey |
Display Specification
| Display | 5.7 inches TFT LCD, QVGA (320×240) |
Summary
| Bandwidth | 100MHz |
| DC Voltage | 600mV/6V/60V/600V/1000V |
| Memory Depth | 7.5kpts |
| Rise Time | ≤3.5ns |
| Trigger Modes | Edge, pulse width, video and alternative |
| Vertical Sensitivity | 5mV/div~50V/div |
| AC Voltage | 600mV/6V/60V/600V/700V |
| DC Current | 6mA/60mA/600mA |
| AC Current | 6mA/60mA/600mA |
Antenna
| Capacitance | 6nF/6mF 60nF/600nF/6μF/60μF/600μF |
TECHNICAL SPECIFICATION
| Sampling Rate | 500MS/s |
General Specification
| Channels | 2 |
| Interfaces | USB host |
| Power | Li-ion battery: 7.4V 4400mAh; DC adapter: 100~240V 50/60Hz input, 9V/4A output |
| Resistance | 6kΩ/60kΩ/600kΩ 600Ω/6MΩ/60MΩ |
| Storage modes | Setup, waveform, bitmap |
| Time base scale | 5ns/div-50s/div |
| Weight | 1.8kg |
