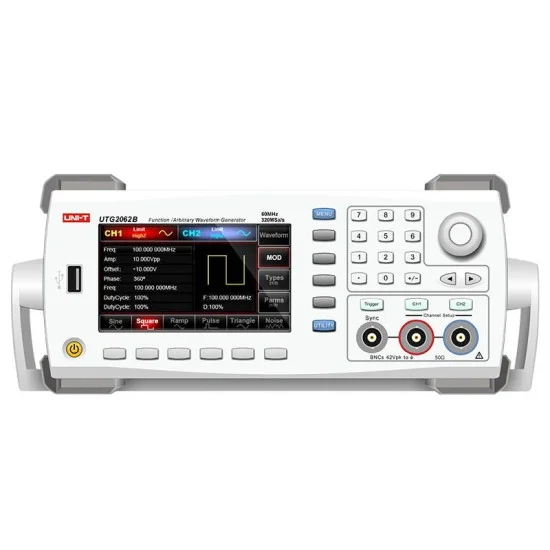

Uni-T UTG2062B Function Arbitrary Waveform Generator

The latest Uni-T UTG2062B Function Arbitrary Waveform Generator price in Pakistan is Rs. 154,000/- updated on June 25, 2026.

OVERVIEW:

• UNI-T UTG2062B is a high-quality bench-top DDS/arbitrary waveform generator, featuring a large, full-color screen, labeled buttons and dual ports for measuring 2 channels simultaneously. It is capable of generating multiple waveform types, including sine, square, ramp, pulse, noise, DC, arbitrary and harmonic. It uses an output frequency of 60 MHz, a frequency resolution of 1 μHz, and has a vertical resolution of 14 bits.

Features:

• Produces sine, square, ramp, pulse, noise, DC, arbitrary and harmonic signals.
• 1 μHz frequency resolution.
• Two equivalent-performance channels, 16 Mpts memory depth.
• The vertical resolution of 16 bits.
• Output amplitude range: 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ).
• Multiple modulation types: AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM.
• 4.3 inch 64 K color TFT LCD screen ((480 × 272).
• Complies with EN 61010-1 and CAT III 300V.
