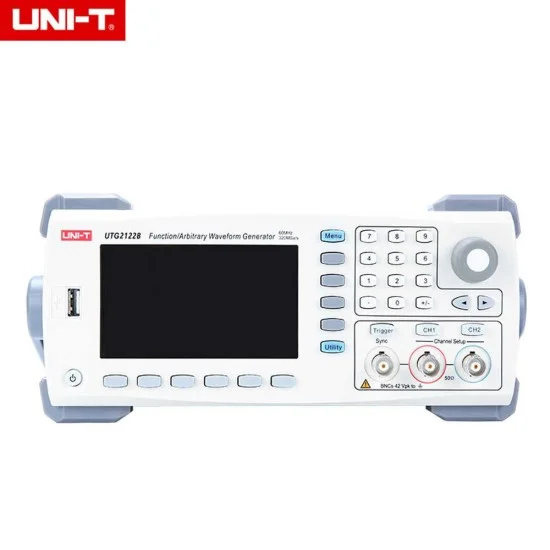

Uni-T UTG2122B Function/Arbitrary Waveform Generator
,

Uni-T UTG2122B Function/Arbitrary Waveform Generator

Compare

₨183,700.00

The latest Uni-T UTG2122B Function/Arbitrary Waveform Generator price in Pakistan is Rs. 183,700/- updated on September 2, 2026.

OVERVIEW:

  • The UNI-T UTG2122B function generator belongs to the UNI-T UTG2000B series and has a maximum bandwidth of 120 MHz.
  • UTG2122B can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.

Features:

  • 1μHz full-band resolution
  • 5MHz~30MHz pulse waveform, adjustable rise/fall time
  • 14-bit/16-bit vertical resolution
  • Two equivalent-performance channels
  • Max arbitrary waveform length of 8k/16M points; 48/161
  • non-volatile waveforms storage

Computers Specs

ColorWhite and grey

Display Specification

Display4.3-inch TFT LCD, WVGA (480 x 272)

Summary

Resolution1μHz
Size265mm x 110mm x 320mm

Antenna

Frequency120MHz

HARDWARE FEATURES

Length8pts~16Mpts
Working ModeOutput on/off, continuous, modulation, sweep, burst

TECHNICAL SPECIFICATION

Sampling Rate320MS/s

General Specification

Channels2
InterfacesUSB Host, USB Device, 10MHz clock source input/output
Power100V~240V ACrms, 50Hz/60Hz
Vertical resolution16 bits (symbol included)
WaveformSine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic
Weight3.2kg
