The latest Uni-T UTG932E Function Arbitrary Waveform Generator price in Pakistan is Rs. 49,450/- updated on June 24, 2026.
OVERVIEW:

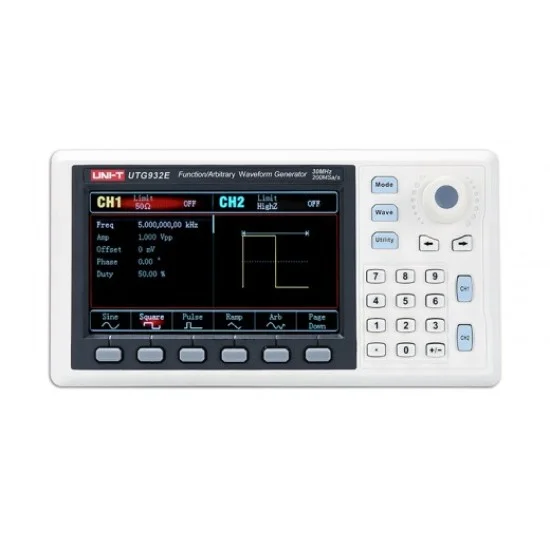

- The UTG932E from UNI-T is a budget 14 bit function generator with a bandwidth 30 MHz. This function generator uses direct digital synthesis (DDS) technology to produce stable and accurate waveforms. This function generator comes with 24 built-in arbitrary waveforms and can store up to 26.PC software it is possible to draw your own waveforms and save them on the function generator. Check out this video for more information about the software.The easy to use inferface, user-friendly graphical display, and compact size make this an ideal budget function generator that will easily fit on any workbench.
Features:
- Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
- Output frequency range: 1ÎĽHz-30MHz/60MHz
- High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
- Two equivalent-performance channels
- 4.3 inches TFT LCD
Display Specification
| Display | 4.3′ (480 x 272) color LCD |
Summary
| Sample rate | 200 MSa/s |
TECHNICAL SPECIFICATION
| Frequency Resolution | 1 µHz |
| Number of Channels | 2 |
General Specification
| Amplitude range | ≤10 MHz: 1 mVpp – 10 Vpp ≤60 MHz: 1 mVpp – 5 Vpp |
| Frequency Range | 1 µHz – 30 MHz |
| Output Impedance | 50 Ω |
| Output signal | Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary |
| Type | Function Arbitrary Waveform Generator |
| Vertical resolution | 14 bit |
| Connectivity | USB |
| Dimensions | 172 x 90 x 68 mm |
