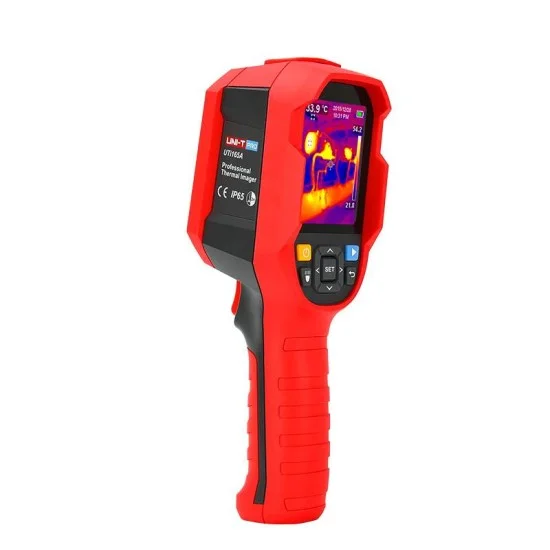

The latest UNI-T UTi165A Infrared Thermal Imaging Camera price in Pakistan is Rs. 86,250/- updated on September 2, 2026.
OVERVIEW:
- UNI-T UTi165A is a thermal imager equipped with an uncooled 160×120 pixel matrix. The device provides complete thermal analysis in a wide temperature range from -10°C to 400°C and has a thermal sensitivity of 150 mK (NETD). The thermal imager has a high level of moisture and dust protection (IP rating IP65).
Features:
- Uncooled IR detector (160×120).
- Focus free, field of view 56°×42°, spatial resolution 11 mrad.
- IP rating: IP65.
- Bright 2.8′ LED with 320 × 240 resolution.
- Temperature range: from -10°C to 400°C, thermal sensitivity: 150 mk.
- PC software for data analysis and report output.
Documents:
UNI-T UTi165A Infrared Thermal Imaging Camera Data Sheet.pdf
Display Specification
| Display | 2.8′ TFT LCD, 320×240 pixels |
Summary
| Temperature Range | -10~400°C |
TECHNICAL SPECIFICATION
| IP Rating | IP65 |
| Measurement Accuracy | ±2C±2% |
General Specification
| Display Mode | Thermal |
| Field of view | 56°×42° |
| Focus | Focus free |
| Frame Rate | <9 Hz |
| IR Resolution | 160×120 pixels |
| Power | Li-ion battery (3.7 V, 5000 mAh) |
| Spatial resolution | 11 mrad |
| Thermal Sensitivity | ≤150 mk (0,15°C) |
| Weight | 455 g |
| Dimensions | 236 mm × 75.5 mm × 86 mm |
