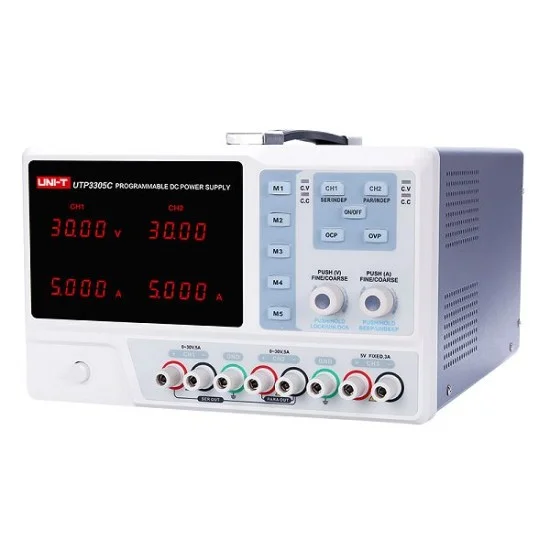

The latest Uni-T UTP3305C DC Power Supply price in Pakistan is Rs. 77,050/- updated on September 2, 2026.
OVERVIEW:
- UTP3000C Series Programmable DC Power Supplies are high precision 4-bit display devices with 3-way output. It is built with voltage and current overload protection, convenient operation panel and one key storage recall. It can be used in aging test, electronics circuit behavior test, and automated system test of different environments. This device is suitable to use in education fields and research labs.
Features:
- High precision 4-bit voltage and current display
- Over votlage and current protection
- Over temperature protection
- One click data recall (up to 5 groups); Optional LAN interface
- Power-off memory; Software calibration; Keyboard lock
Documents:
Display Specification
| Display | 4 windows, LED |
Summary
| Size | 260mm x 176mm x 317mm |
| Output Power | 315W |
| Output Current | 0~5A (CH1/CH2) |
General Specification
| Interfaces | USB Device, RS-232 |
| Power | AC 100V/120V/220V/230V±10%, 50Hz/60Hz |
| Weight | 9.1kg |
| Output Voltage | 0~30V (CH1/CH2) |
