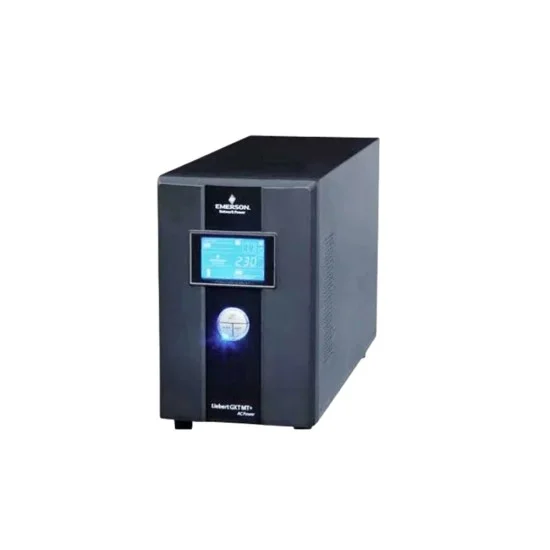

The latest Vertiv GXT2000MTPLUSC230 VERTIV 2KVA/1800W UPS price in Pakistan is Rs. 148,000/- updated on October 21, 2026.
You can buy the Vertiv GXT2000MTPLUSC230 VERTIV 2kVA/1800W UPS online at Roshanex in Pakistan.
FEATURES:
- Power Factor: 0.9
- Maximum support: 1800 Watts
- Pure Sine Wave
- Double conversion on-line technology
- IGBT Based Rectifier
- True Online Double Conversion With DSP Control Technology For High Performance And Reliability
- New Graphical LCD Display Provides UPS Data, Alarms And Helps In Faults Diagnostics And Trouble Shooting
- Double Conversion Efficiency Upto 90%
- Active Input Power Factor Correction 0.99
- 0.9 Output Power Factor*
- Ultra Wide Input Voltage Window: 110-280VAC, Suited For Very Poor Quality Power Grid.
- Configurable Output Voltage (200/208/220/230/240Vac)
- Generator Compatible With Wide Input Frequency Range (40Hz-70Hz)
- 4 Stage Extendable Charging Design For Optimized Battery Performance
- Adjustable Battery Charging Design For Optimized Battery Performance
- 50/60Hz Automatic Frequency Converter Mode
- Intelligent Monitoring with Standard Rs. 232/USB Port Plus Slot Available For RD485/Dry Contact/SNMP Card
Documents:
Vertiv GXT2000MTPLUSC230 VERTIV 2KVA/1800W UPS Data Sheet.pdf
Summary
| Recharge Time | Typical : 4 hours recover to 90% capacity |
| Power Factor | Input : 0.99 @ 100% load |
| Weight | 17KG |
| Output Frequency | (Synchronized Range): 46Hz ~ 54 Hz or 56Hz ~ 64 Hz, (Batt. Mode): 50 Hz 0.1 Hz or 60 Hz 0.1 Hz |
| Output Current | Crest Ratio: 3:1 (max.) |
HARDWARE FEATURES
| Charging Current | Max : 1.0 A |
| Charging Voltage | 54.7VDC 1% |
| Efficiency | Output : on AC to AC mode@ 100% load. : 88% |
| Input Frequency Range | 40 Hz ~ 70 Hz |
| Interface | Smart RS-232/USB |
Output
| Nominal Output Voltage | 208/220/230/240VAC |
| Transfer Time | Output : Bypass to Inverter (Line mode) : Zero; Inverter to Bypass (Line mode) : 4 ms (Typical) |
General Specification
| Backup Time | 5 – 8 Minutes of Backup Time |
| Battery Type | 12 V x 9 AH x 4 |
| Noise Level | Less than 50dBA @ 1 Meter |
| Output | 2KVA/1800 Watts |
| Output AC Voltage Regulation | 1% |
| Output Harmonic Distortion | 3 % THD (Linear Load), = 7 % THD (Non-linear Load) |
| Series | CX Series PF0.9 |
| Support | Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC |
| Waveform | Output : (Batt. Mode) : Pure Sinewave |
| Dimensions | Width x Depth x Height = 421mm x 190mm x 318mm |
Input
| Nominal Input Voltage | 230 Vac |
