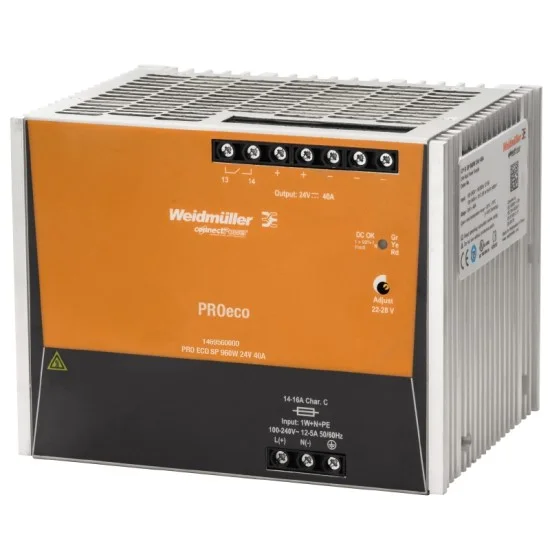

Weidmuller PRO ECO3 960W 24V 40A Switched-Mode Power Supply
Weidmuller PRO ECO3 960W 24V 40A Switched-Mode Power Supply - Image 2

Weidmuller PRO ECO3 960W 24V 40A Switched-Mode Power Supply

Compare

₨130,000.00

The latest Weidmuller PRO ECO3 960W 24V 40A Switched-Mode Power Supply price in Pakistan is Rs. 130,000/- updated on July 21, 2026.

OVERVIEW:

  • You are looking for a reliable power supply with basic functions.
  • With PROeco we can offer you low-cost switch-mode power supply units with high efficiency and system capability. Let’s connect.
  • In the series production of machines, in particular, switchmode power supply units with above-average performance values can deliver genuine competitive advantages.
  • The low-cost PROeco series offers all the basic functions and delivers impressively high performance and flexibility.
  • Our PROeco switch-mode power supply units feature  a compact design, high efficiency and are extremely easy to maintain. Thanks to temperature protection, short-circuit and overload resistance they can be universally used in all applications.
  • Wide-ranging safety functions and compatibility with our diode and capacitance modules, together with UPS components for setting up a redundant power supply, characterise solutions with PROeco.
Documents:

Weidmuller PRO ECO3 960W 24V 40A Switched-Mode Power Supply Data Sheet.pdf

Summary

Height 125 mm
Inrush Current max. 40 A
Depth 120 mm
Output Power 960 W

TECHNICAL SPECIFICATION

AC Current Consumption 2,15 A @ 3 x 500 V AC / 2,68 A @ 3 x 400 V AC
AC Input Voltage Range 3 x 320…3 x 575 V AC / 2 x 360…2 x 575 V AC
Connection System Screw connection
DC Current Consumption 1,37 A @ 800 V DC / 2,37 A @ 450 V DC
DC Input Voltage Range 450…800 V DC (max. 500 V DC acc. to UL508)
Earth Leakage Current Max : 3.5 mA
Operating Altitude ≤ 3000 m
Rated Input Voltage 3 x 400…3 x 500 V AC (wide-range input)
Rated Output Voltage 24 V DC ± 1 %
Storage temperature -40°C…85°C

General Specification

Degree of efficiency 90%
Housing Material Metal, corrosion-resistant
Operating Temperature -25°C…70°C
Output Voltage 24 V
Weight 2,899 g
Width 160 mm

Input

Input frequency 47…63 Hz

WIRELESS FEATURES

Frequency Range AC: 47…63 Hz
