The latest Zilo Nexa Smart 16kWh 51.2V 314Ah Lithium Battery price in Pakistan is Rs. 540,000/- updated on October 31, 2026.

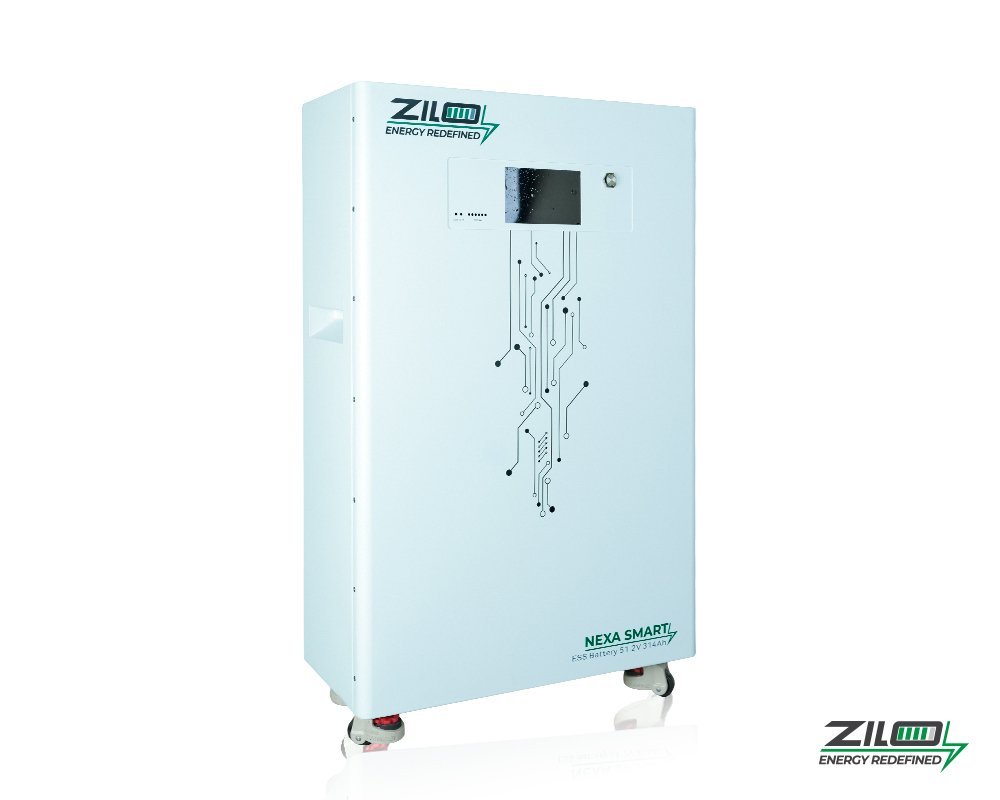

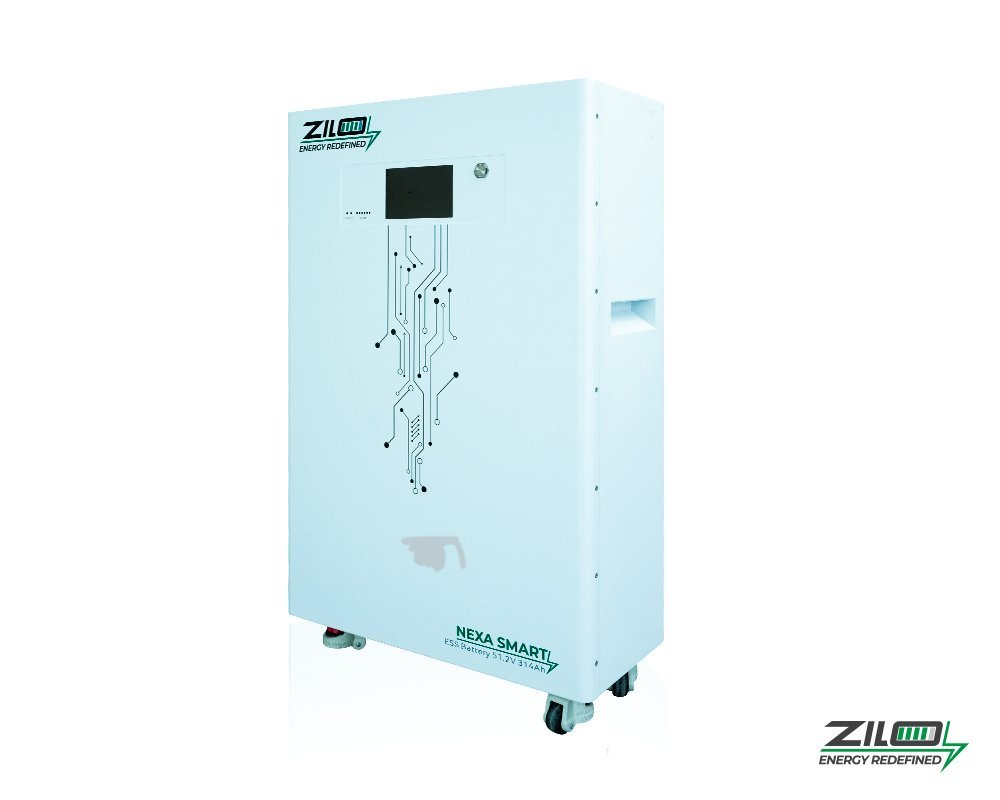

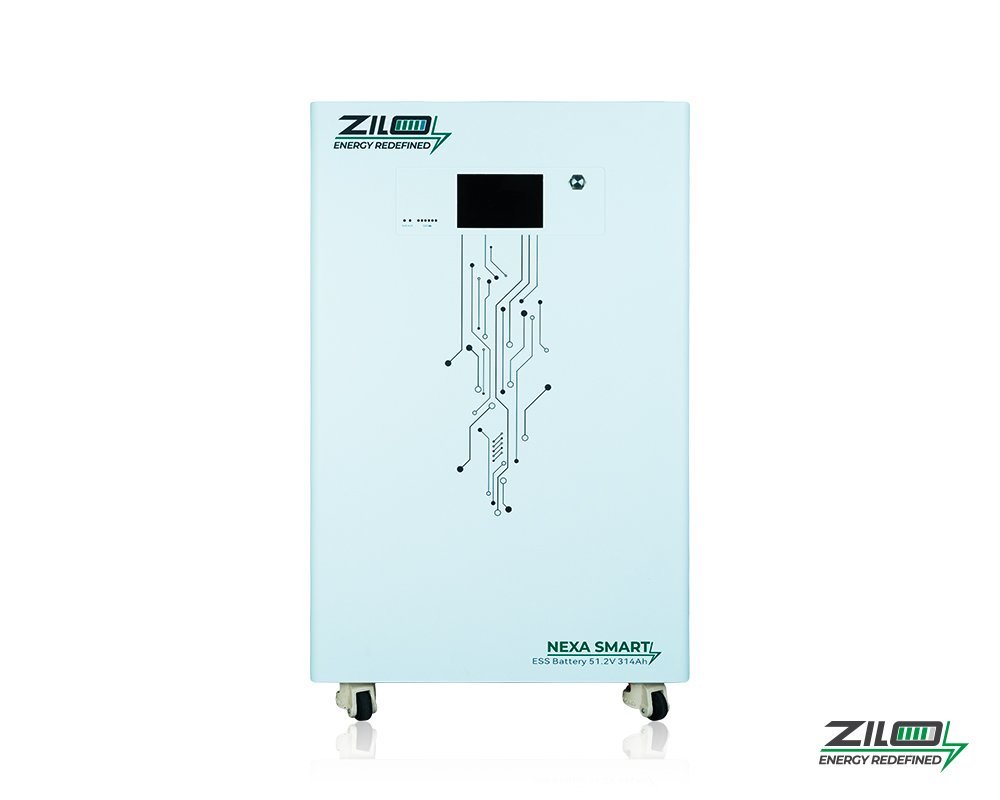

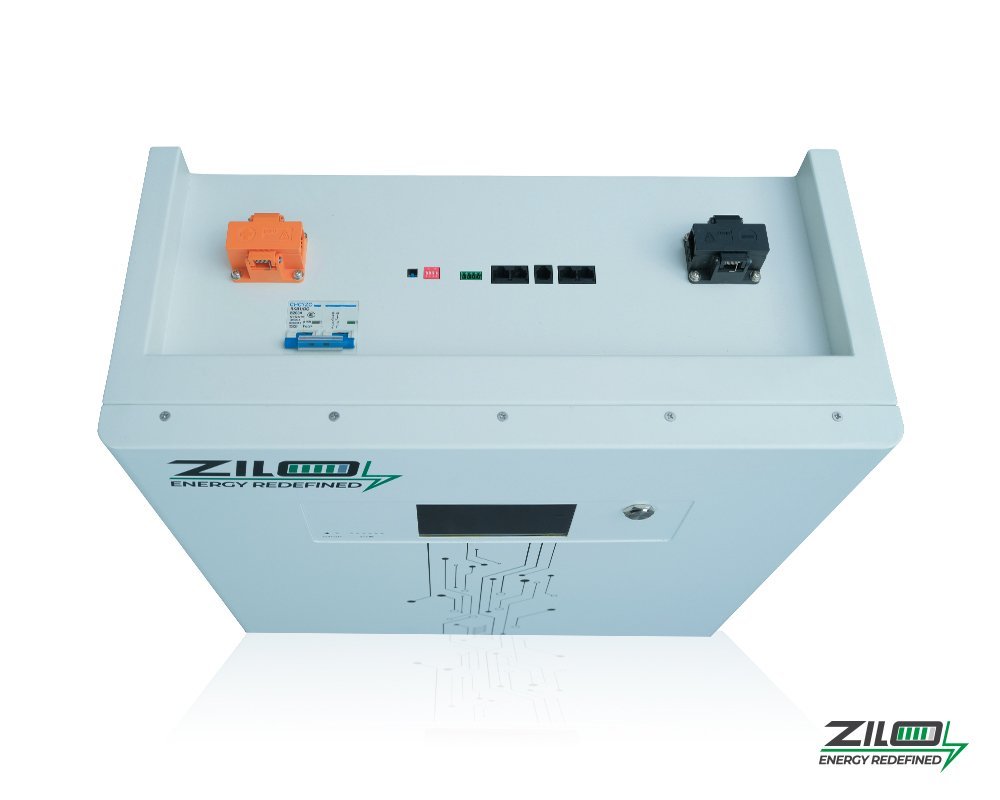

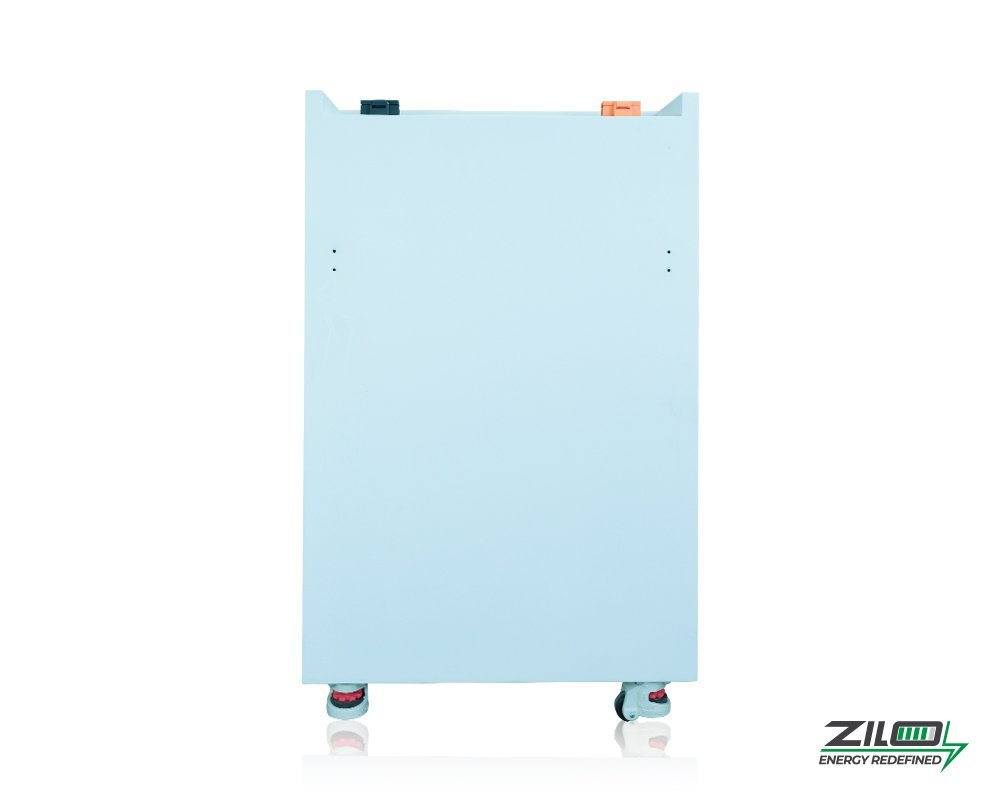

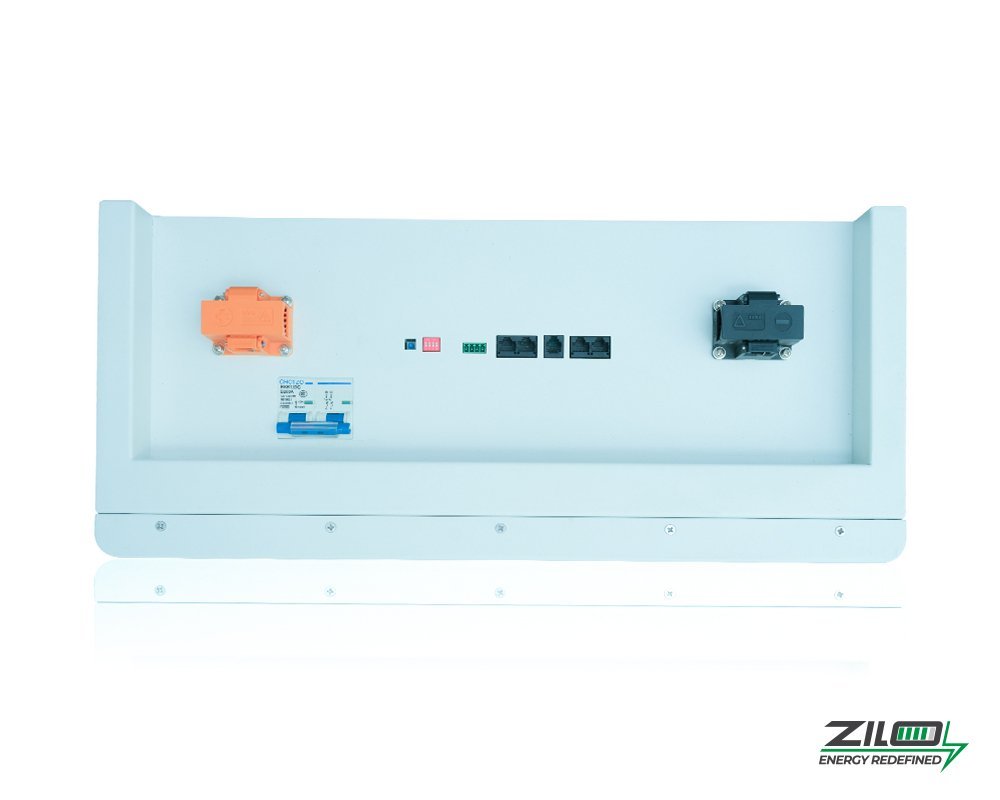

The Zilo Nexa Smart 16kWh is a 51.2V 314Ah LiFePO4 lithium battery with a built-in smart display. It stores 16.07 kWh of energy, and 14.4693 kWh of that is usable. Zilo Energy is a brand under Focal Hub Pvt. Limited. Zilo says it manufactures its batteries in Pakistan, which also means local support.
Zilo Nexa Smart 16kWh with Long Cycle Life
This battery uses LiFePO4 cells rated for 8000 or more cycles at 90% depth of discharge. Zilo uses Tier-1 lithium cells. In addition, LiFePO4 chemistry gives safe and stable operation. Zilo engineers it for long-term durability and proven reliability. It also supports 1C charge and discharge, so it can handle heavy household loads.
5-Inch Display with Wi-Fi and Bluetooth
The Nexa Smart adds a 5-inch LED display with Wi-Fi and Bluetooth. As a result, you can check the battery status on the unit itself. You can also monitor and control it through the app.
Expandable Modular Design
The modular design lets you add batteries as your energy needs grow. You can connect up to 16 units in parallel for a maximum of 256 kWh. Each unit communicates over CAN and RS485. Its 51.2V nominal voltage fits hybrid inverters built for 48V battery systems. Zilo also states that it is compatible with most mainstream inverters. So check that your inverter supports CAN or RS485 battery communication.
Installation and Operating Conditions
The battery stands on the floor. It measures 850 × 236 × 550 mm (H×D×W) and weighs 125 kg. It uses natural cooling. Moreover, it charges from 0°C to 55°C and discharges from -20°C to 55°C. Zilo rates it for altitudes of below 4000 m. Its protection rating is IP22, so install it in a dry, sheltered indoor space.
Warranty and Reliable Backup
Zilo offers a 5-year replacement warranty, which you can extend up to 10 years. It also highlights reliable performance in high temperatures and an explosion-proof safety design. Overall, Zilo designs the Nexa range for reliable backup power and uninterrupted home use. According to its datasheet, Zilo is an ISO certified company.
Zilo Nexa Smart 16kWh Price in Pakistan
The Zilo Nexa Smart 16kWh 51.2V 314Ah battery price in Pakistan is Rs 540,000.
Documents:
| General | |
| Model | Nexa Smart (16.07 kWh) |
|---|---|
| Display | 5 inch LED Display, Wi-Fi, Bluetooth |
| Installation | Floor Stand |
| Dimension (H×D×W) | 850×236×550 mm |
| Weight (KG) | 125 KG |
| Cell Technology | Lithium Iron Phosphate, LiFePO4 |
| Cooling Type | Natural |
| Cell String | 16S |
| Electrical Characteristics | |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16.07 kWh |
| Usable Energy | 14.4693 kWh |
| Operating Voltage Range | 44.8 V – 57.6 V |
| Recommended Charge Current | 150 A |
| Recommended Discharge Current | 150 A |
| Expansion | Upto 16 units in parallel, Max 256 kWh |
| Communication | CAN, RS485 |
| Cycle Life (26°C 0.5C) | ≥ 8000 times @90% DOD |
| Environmental | |
| Operation Temperature | Charge: 0 ~ 55°C / Discharge: -20°C ~ 55°C |
| Storage Temperature | -20 ~ +35°C |
| Storage Humidity | ≤95% RH, Non-condensation |
| Altitude (m) | <4000 m |
| IP Class | IP22 |
| Internal Resistance | <30mΩ |
| Warranty | |
| Warranty | 5-year replacement warranty, extendable up to 10 years (per Zilo website) |
| Inverter Compatibility | Compatible with most mainstream inverters (per Zilo website); CAN / RS485 communication |
| Notes & Conditions (from official datasheet) | |
| The catalog lists the recommended charge and discharge current in "Ah"; the values are shown here in A. | |
| The Zilo website lists the charge and discharge current as 157A and the IP class as IP23. | |
| Source: Zilo Energy lithium-ion energy storage battery product catalog. Specifications may change without notice. | |
