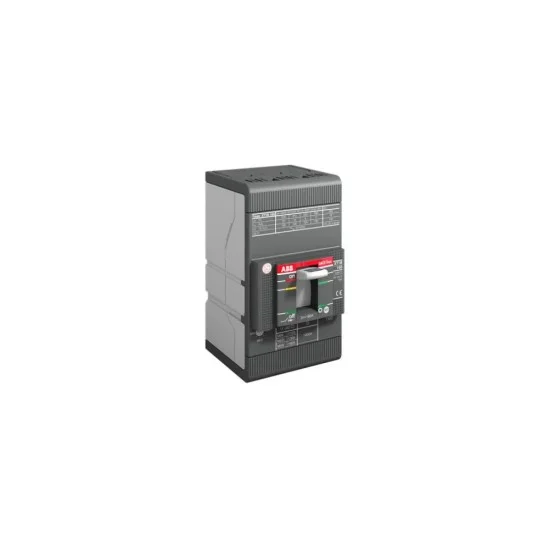

ABB XT1C 160 25A Triple Pole 17 ~ 25A Moulded Case Circuit Breaker
₨ 11,050
The latest ABB XT1C 160 25A Triple Pole 17 ~ 25A Moulded Case Circuit Breaker price in Pakistan is Rs. 11,050/- updated on October 20, 2026.
You can buy the ABB XT1C 160 25A Triple Pole 17 ~ 25A Moulded Case Circuit online at Roshanex in Pakistan.
OVERVIEW:
- C.Breaker Tmax XT1C 160 Fixed Three-Pole With Front Terminals And Thermomagnetic Release Tmd R 25-450 A
Also, you can browse more ABB products at Roshanex. In addition, our team can help you choose the right model before you order.
Capacitance
| Breaking capacity | Icu : 18KA |
HARDWARE FEATURES
| Number of Poles | Triple Pole |
TECHNICAL SPECIFICATION
| Adjustable Range | 17 ~ 25A |
| Impulse Withstand Voltage | Rated (Uimp) : 8 kV |
| Insulation Voltage | Rated (Ui) : 800 V |
| Operational Voltage | Rated : 690 V AC | 500 V DC |
| Rated Frequency | 50 / 60 Hz |
| Rated Impulse Withstand Voltage | Nr. Operations 240 cycles per hour | Nr. Operations 25000 cycle |
| Rated Voltage | (Ur) : 690 V |
General Specification
| Ampere Rating | 25 A |
| Connection Type | Termianl : Fixed Circuit-Breakers Front |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour 8000 cycle |
| Mechanical Durability | Rated (Ui) : 690 V |
| Opening Time | CB with SOR 15 ms | CB with UVR 15 ms |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Type | Moulded Case Circuit Breaker |
