The latest GoodWe 16.1kWh Lithium Battery IP65 price in Pakistan is Call for Price updated on August 29, 2026.

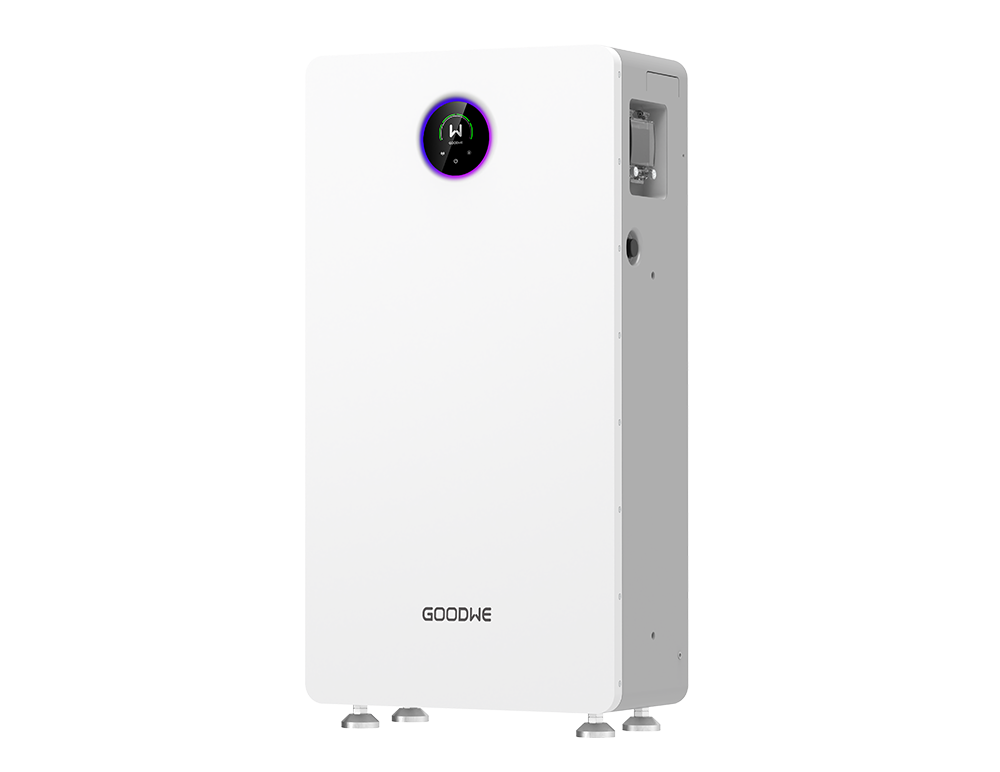

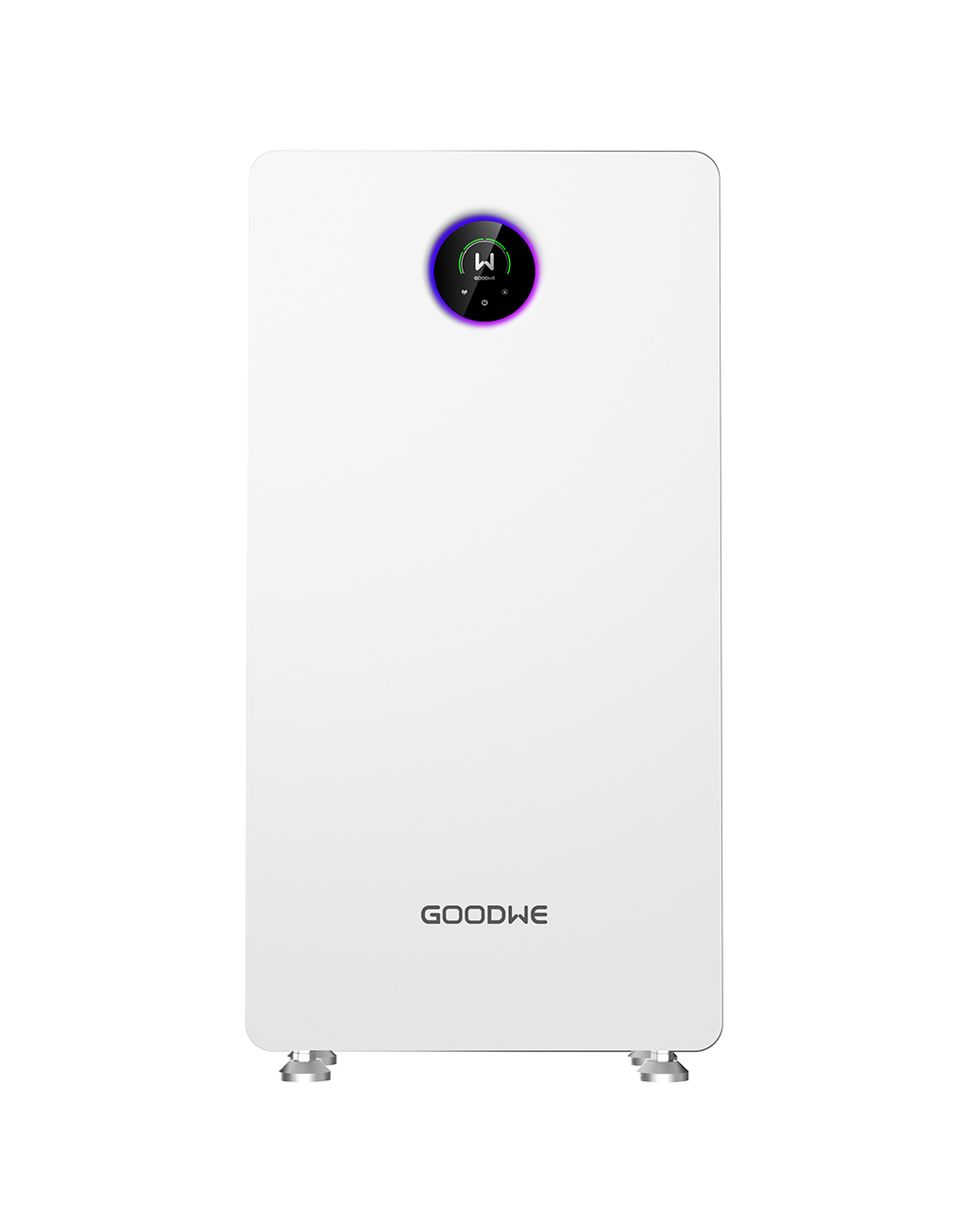

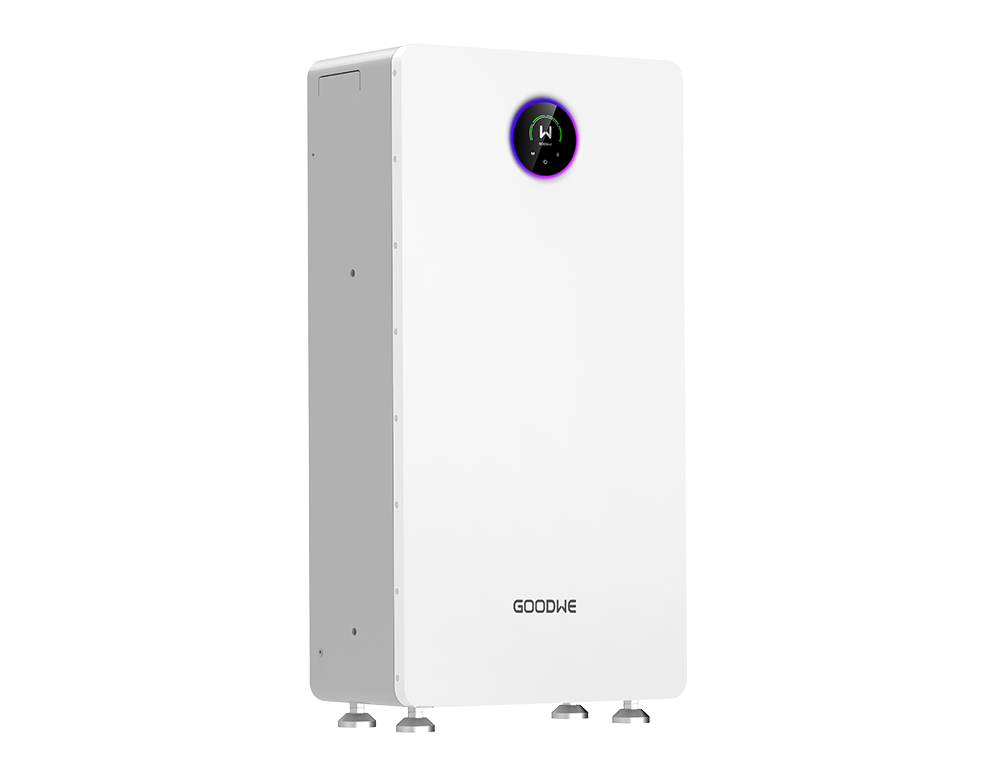

The Lynx A G4 Series 16kWh battery is a high-capacity, low-voltage energy storage solution designed for residential use. It allows homeowners to store excess solar energy for peak demand and backup power, increasing energy independence and maximizing self-consumption. Fully compatible with GoodWe low-voltage inverters, it delivers seamless integration and optimized performance for a reliable and efficient home energy experience.
High Performance
Engineered for demanding energy needs, the Lynx A G4 delivers strong and stable power output by combining high-rate 0.5C charge / 0.63C discharge capability with durable, high-capacity 314Ah cells rated for 10,000 cycles – ensuring reliable long-term performance even under high-load demands. Heating technology extends reliable operation down to –20°C, while an integrated current-limiting function enables fast expansion and automatic parallel recovery for growing systems.
Multi-layer Safety
The Lynx A G4 Series battery features a multi-layer safety design that safeguards system operation – combining insulation, isolation, and active protection to minimize risks across diverse environments. It carries an IP65 protection rating for longer life and higher durability, incorporates thermal-electric separation with cell-level heat isolation, and offers an optional aerosol fire suppression system for active fire control.
Quick & Easy Installation
A built-in breaker reduces the number of external components needed, speeding up installation, while the unit’s compact footprint and optional wheels make it easier to move, install, and maintain on site.
Flexible Scalability
Up to 30 units can be connected in parallel to scale power as energy needs grow. The dual-terminal daisy-chain design eliminates the need for a separate busbar, giving installers full flexibility in system layout, and the battery supports both floor-mounted and wall-mounted installation.
Datasheet:
User Manual:
Battery Compatibility List:
| Technical Data (GW16.1-BAT-LV-G10) | |
| Battery Type | LFP (LiFePO4) |
|---|---|
| Rated Capacity (Ah) | 314 |
| Rated Energy (kWh) | 16.1 |
| Usable Energy (kWh) | ≥14.9 |
| Nominal Voltage (V) | 51.2 |
| Voltage Range (V) | 45.92 ~ 57.76 |
| Max. Continuous Charging Current (System) (A) | 157 |
| Max. Continuous Discharging Current (System) (A) | 200 |
| Max. Input Power (kW) | 8 |
| Max. Output Power (kW) | 10 |
| Peak Output Power (System) (kW) | 16 (15s) |
| Charging Temperature Range (°C) | 0 ~ +55 |
| Discharging Temperature Range (°C) | -20 ~ +55 |
| Relative Humidity | 5 – 95% |
| Max. Operating Altitude (m) | 4000 |
| Communication | CAN |
| Weight (kg) | ≤122 |
| Useable Extinguishing Agent | CO2, H2O |
| Crucial Material | LiFePO4, C, Cu, LiPF6, Al, (C3H6)n |
| Ingress Protection | IP65 |
| Protective Class | I |
| Dimensions (W × H × D mm) | ≤470 × 895 × 245 (No base) |
| Function Configuration | Regulating wheel (Optional); Aerosol fire extinguishing (Optional) |
| Max. Storage Time | ≤12 months (-20 ~ +35°C) / ≤6 months (+35 ~ +45°C) |
| Scalability | 30P |
| Mounting Method | Wall-Mounted, Floor-Mounted |
| Cycle Life | ≥10000 |
| Standard and Certification | |
| Safety | IEC62619, IEC60730, IEC63056, CE |
| EMC | CE |
| Transportation | UN38.3, MSDS |
| Notes & Conditions (from official datasheet) | |
| *1: Test conditions, 100% DOD (cell 2.87 ~ 3.61V voltage range), 0.2P charge & discharge at 25 ± 2°C for battery system at the beginning of life. Usable energy is defined by its initial design value. Actual available energy may vary depending on charge/discharge rate, environmental conditions (e.g. temperature), transport and storage factors. | |
| *2: Max. Input Power / Max. Output Power / Peak Output Power derating will occur related to Temperature and SOC. | |
| *3: Based on test data under specific laboratory conditions. | |
| GoodWe-Single page-20260522-EN-V2.1. Information may be subject to change without notice during product improving. | |
